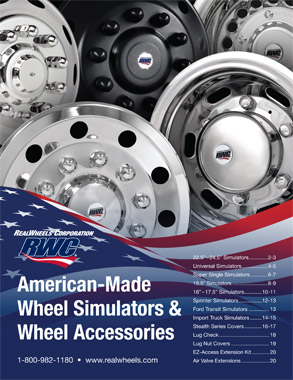

American-Made Wheel Simulators & Wheel Accessories
22.5” – 24.5” Simulators.............. 2-3
Universal Simulators................... 4-5
Super Single Simulators............. 6-7
19.5” Simulators......................... 8-9
16” – 17.5” Simulators............. 10-11

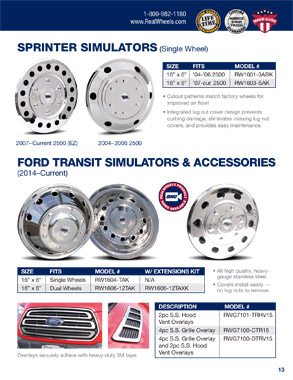

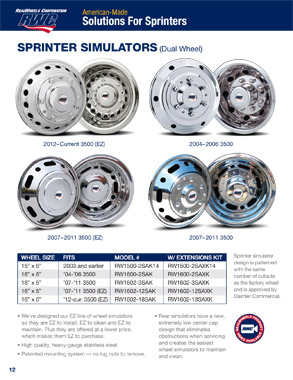

Sprinter Simulators................. 12-13
Ford Transit Simulators............... 13
Import Truck Simulators......... 14-15

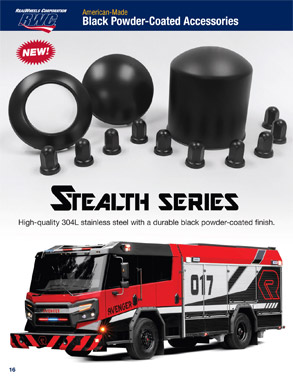

Stealth Series Covers............. 16-17

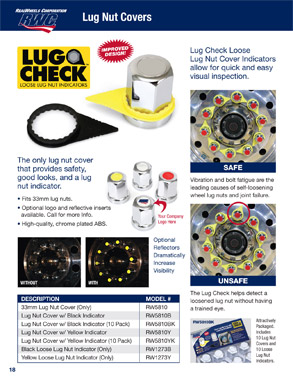

Lug Check................................... 18

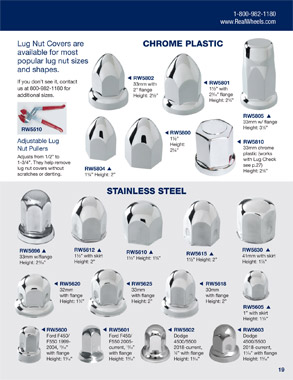

Lug Nut Covers........................... 19
EZ-Access Extension Kit............. 20
Air Valve Extensions.................... 20
1-800-982-1180 • www.realwheels.com
American-Made

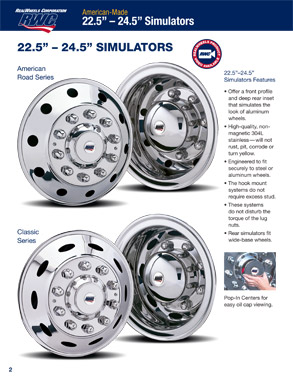

22.5” – 24.5” Simulators
American Road Series
Classic Series
RealWheels Product Video Available
22.5”–24.5” Simulators Features
• Offer a front profile and deep rear inset that simulates the look of aluminum wheels.
• High-quality, non-magnetic 304L stainless — will not rust, pit, corrode or turn yellow.
• Engineered to fit securely to steel or aluminum wheels.
• The hook mount systems do not require excess stud.
• These systems do not disturb the torque of the lug nuts.
• Rear simulators fit wide-base wheels.
Pop-In Centers for easy oil cap viewing.
2

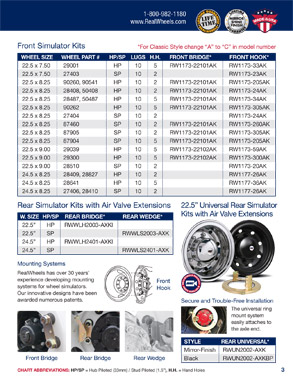

Front Simulator Kits
| WHEEL SIZE | WHEEL PART # | HP/SP | H.H. | LUGS | FRONT BRIDGE* | FRONT HOOK* |
|---|
| 22.5 x 7.50 | 29001 | HP | 10 | 5 | RW1173-22101AK | RW1173-33AK |
| 22.5 x 7.50 | 27403 | SP | 10 | 2 | | RW1173-23AK |
| 22.5 x 8.25 | 90260, 90541 | HP | 10 | 2 | RW1173-22101AK | RW1173-205AK |
| 22.5 x 8.25 | 28408, 50408 | HP | 10 | 2 | RW1173-22101AK | RW1173-24AK |
| 22.5 x 8.25 | 28487, 50487 | HP | 10 | 5 | RW1173-22101AK | RW1173-34AK |
| 22.5 x 8.25 | 90262 | HP | 10 | 5 | RW1173-22101AK | RW1173-305AK |
| 22.5 x 8.25 | 27404 | SP | 10 | 2 | | RW1173-24AK |
| 22.5 x 8.25 | 87460 | SP | 10 | 2 | RW1173-22101AK | RW1173-260AK |
| 22.5 x 8.25 | 87905 | SP | 10 | 2 | RW1173-22101AK | RW1173-305AK |
| 22.5 x 8.25 | 87904 | SP | 10 | 5 | RW1173-22101AK | RW1173-205AK |
| 22.5 x 9.00 | 29039 | HP | 10 | 5 | RW1173-22102AK | RW1173-59AK |
| 22.5 x 9.00 | 29300 | HP | 10 | 5 | RW1173-22102AK | RW1173-300AK |
| 22.5 x 9.00 | 28510 | SP | 10 | 2 | | RW1173-20AK |
| 24.5 x 8.25 | 28409, 28827 | HP | 10 | 2 | | RW1177-26AK |
| 24.5 x 8.25 | 28641 | HP | 10 | 5 | | RW1177-36AK |
| 24.5 x 8.25 | 27406, 28410 | SP | 10 | 2 | | RW1177-26AK |
*For Classic Style change “A” to “C” in model number
Rear Simulator Kits with Air Valve Extensions
| WHEEL SIZE | HP/SP | REAR BRIDGE* | REAR WEDGE* |
|---|
| 22.5” | HP | RWWLH2003-AXKI | |
| 22.5” | SP | | RWWLS2003-AXK |
| 24.5” | HP | RWWLH2401-AXKI | |
| 24.5” | SP | | RWWLS2401-AXK |
Mounting Systems
RealWheels has over 30 years’ experience developing mounting systems for wheel simulators. Our innovative designs have been awarded numerous patents.
- Front Hook
- Front Bridge
- Rear Bridge
- Rear Wedge
22.5” Universal Rear Simulator Kits with Air Valve Extensions
Secure and Trouble-Free Installation
The universal ring mount system easily attaches to the axle end.
| STYLE | REAR UNIVERSAL* |
|---|
| Mirror-Finish | RWUN2002-AXK |
| Black | RWUN2002-AXKBP |
RealWheels Product Video Available
CHART ABBREVIATIONS: HP/SP = Hub Piloted (33mm) / Stud Piloted (1.5”), H.H. = Hand Holes
1-800-982-1180
www.RealWheels.com
American-Made

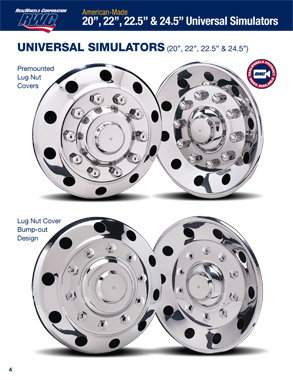

20”, 22”, 22.5” & 24.5” Universal Simulators
UNIVERSAL SIMULATORS (20”, 22”, 22.5” & 24.5”)
Premounted Lug Nut Covers
Lug Nut Cover Bump-out Design
RealWheels Product Video Available
4
For Steel Disc Wheels (Center Mount Bracket)
| | PREMOUNTED LUG NUTS | INTEGRATED LUG NUTS |
|---|
| WHEEL SIZE | LUGS | FRONT | REAR | FRONT | REAR |
|---|
| 22.5” | 8 | RW1170LK-34C | RW1021LK-UC | RW1170BK-34C | RW1021BK-UC |
| 20” or 22.5” | 10 | RW1173LK-34C | RW1021LK-UC | RW1173BK-34C | RW1021BK-UC |
| 24.5” | 10 | RW1177LK-34C | RW1023LK-UC | RW1177BK-34C | RW1023BK-UC |
20” rim must have an outside diameter of 23”
Wheel Part Numbers For Steel Disc Wheels
22.5” 10 Lug: 27403, 28408, 28487, 28510, 29001, 29039, 29300, 50408, 50487, 87904, 90260, 90262, 90541
24.5” 10 Lug: 27406, 28409, 28410, 28641, 28827
8 Lug: 28869, 29028, 90973, 28484,8884
Cast Spoke Wheels (Center Mount Bracket)
| | PREMOUNTED LUG NUTS | LUG NUT BUMP-OUT DESIGN |
|---|
| WHEEL SIZE | FRONT | REAR | FRONT | REAR |
|---|
| 20” or 22.5” | RW1121LK-34C | RW1021LK-UC | RW1121BK-34C | RW1021BK-UC |
| 22” or 24.5” | RW1123LK-34C | RW1023LK-UC | RW1123BK-34C | RW1023BK-UC |
| 26” | RW1178LK-34C | RW1023LK-UC | RW1178BK-34C | RW1023BK-UC |
• To add Braided Air Valve Extensions (RW1258) for rear covers, add an “X” before the “K” in the model number (e.g. RW1021LXK-UC).
Whether you have an early model truck with cast spoke (Dayton) wheels or a brand new truck with steel disc wheels, these covers fit them all.
Universal Simulator Features
• Available in sizes to fit 20” & 22.5” and 22” & 24.5”.
• High-quality 304L stainless steel will not rust, pit, corrode or turn yellow.
• Easy care and low maintenance for years to come.
• With our Lug Nut Cover Bump-out Design, you get the styling of lug nuts, yet cleaning is a snap since you don’t have the full lug nut cover to wash around.
Center Mount
Universal Simulators are for cast spoke (Dayton) or steel disc wheels. Truly Universal for any wheel. Center mount system makes installation simple and D.O.T. inspections easy.
Cast Spoke Wheels
Before and After
1-800-982-1180
www.RealWheels.com

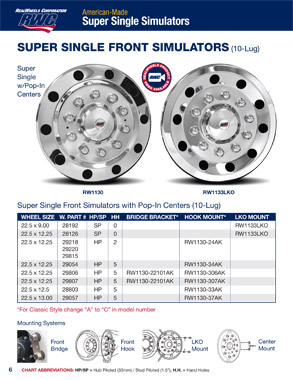

SUPER SINGLE FRONT SIMULATORS (10-Lug)
Super Single w/Pop-In Centers
RealWheels Product Video Available
RW1130
RW1133LKO
Super Single Front Simulators with Pop-In Centers (10-Lug)
| WHEEL SIZE | WHEEL PART NUMBER | HP/SP | HH | BRIDGE BRACKET* | HOOK MOUNT* | LKO MOUNT |
|---|
| 22.5 x 9.00 | 28192 | SP | 0 | | | RW1133LKO |
| 22.5 x 12.25 | 28126 | SP | 0 | | | RW1133LKO |
| 22.5 x 12.25 | 29218, 29220, 29815 | HP | 2 | | RW1130-24AK | |
| 22.5 x 12.25 | 29054 | HP | 5 | | RW1130-34AK | |
| 22.5 x 12.25 | 29806 | HP | 5 | RW1130-22101AK | RW1130-306AK | |
| 22.5 x 12.25 | 29807 | HP | 5 | RW1130-22101AK | RW1130-307AK | |
| 22.5 x 12.5 | 28803 | HP | 5 | | RW1130-33AK | |
| 22.5 x 13.00 | 29057 | HP | 5 | | RW1130-37AK | |
*For Classic Style change “A” to “C” in model number
Mounting Systems
Front Hook
LKO Mount
Center Mount
Front Bridge
CHART ABBREVIATIONS: HP/SP = Hub Piloted (33mm) / Stud Piloted (1.5”), H.H. = Hand Holes

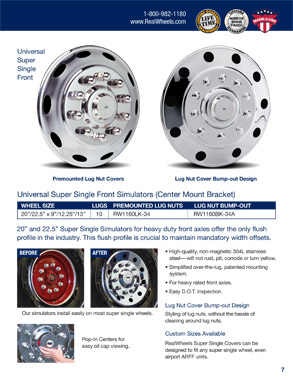

American-Made
Super Single Simulators
Universal Super Single Front
Premounted Lug Nut Covers
Lug Nut Cover Bump-out Design
Universal Super Single Front Simulators (Center Mount Bracket)
| WHEEL SIZE | LUGS | PREMOUNTED LUG NUTS | LUG NUT BUMP-OUT |
|---|
| 20”/22.5” x 9”/12.25”/13” | 10 | RW1160LK-34 | RW1160BK-34A |
20” and 22.5” Super Single Simulators for heavy duty front axles offer the only flush profile in the industry. This flush profile is crucial to maintain mandatory width offsets.
• High-quality, non-magnetic 304L stainless steel — will not rust, pit, corrode or turn yellow.
• Simplified over-the-lug, patented mounting system.
• For heavy rated front axles.
• Easy D.O.T. inspection.
Lug Nut Cover Bump-out Design
Styling of lug nuts, without the hassle of cleaning around lug nuts.
Custom Sizes Available
RealWheels Super Single Covers can be designed to fit any super single wheel, even airport ARFF units.
BEFORE / AFTER
Our simulators install easily on most super single wheels.
Pop-In Centers for easy oil cap viewing.
1-800-982-1180
www.RealWheels.com

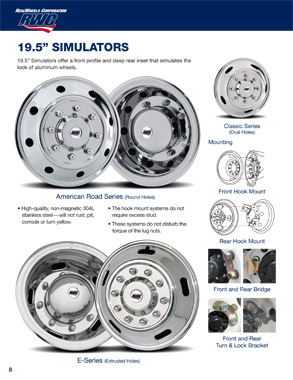

19.5” SIMULATORS
19.5” Simulators offer a front profile and deep rear inset that simulates the look of aluminum wheels.
American Road Series (Round Holes)
• High-quality, non-magnetic 304L stainless steel — will not rust, pit, corrode or turn yellow.
• The hook mount systems do not require excess stud.
• These systems do not disturb the torque of the lug nuts.
E-Series (Extruded Holes)
Classic Series (Oval Holes)
Mounting
- Front Hook Mount
- Rear Hook Mount
- Front and Rear Bridge
- Front and Rear Turn & Lock Bracket
American-Made

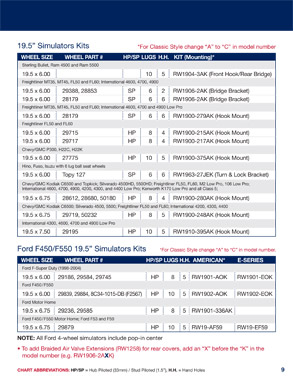

19.5” Simulators
19.5” Simulators Kits
| WHEEL SIZE | WHEEL PART # | HP/SP | LUGS | H.H. | KIT (Mounting)* |
|---|
| Sterling Bullet, Ram 4500 and Ram 5500 |
| 19.5 x 6.00 | | | 10 | 5 | RW1904-3AK (Front Hook/Rear Bridge) |
| Freightliner MT35, MT45, FL50 and FL60; International 4600, 4700, 4900 |
| 19.5 x 6.00 | 29388, 28853 | SP | 6 | 2 | RW1906-2AK (Bridge Bracket) |
| 19.5 x 6.00 | 28179 | SP | 6 | 6 | RW1906-2AK (Bridge Bracket) |
| Freightliner MT35, MT45, FL50 and FL60; International 4600, 4700 and 4900 Low Pro |
| 19.5 x 6.00 | 28179 | SP | 6 | 6 | RW1900-279AK (Hook Mount) |
| Freightliner FL50 and FL60 |
| 19.5 x 6.00 | 29715 | HP | 8 | 4 | RW1900-215AK (Hook Mount) |
| 19.5 x 6.00 | 29717 | HP | 8 | 4 | RW1900-217AK (Hook Mount) |
| Chevy/GMC P300, H22C, H22K |
| 19.5 x 6.00 | 27775 | HP | 10 | 5 | RW1900-375AK (Hook Mount) |
| Hino, Fuso, Isuzu with 6 lug ball seat wheels |
| 19.5 x 6.00 | Topy 127 | SP | 6 | 6 | RW1963-27JEK (Turn & Lock Bracket) |
| Chevy/GMC Kodiak C6500 and Topkick; Silverado 4500HD, 5500HD; Freightliner FL50, FL60, M2 Low Pro, 106 Low Pro; International 4600, 4700, 4900, 4200, 4300, and 4400 Low Pro; Kenworth K170 Low Pro and all Class 5; |
| 19.5 x 6.75 | 28612, 28680, 50180 | HP | 8 | 4 | RW1900-280AK (Hook Mount) |
| Chevy/GMC Kodiak C6500; Silverado 4500, 5500; Freightliner FL50 and FL60; International 4200, 4300, 4400 |
| 19.5 x 6.75 | 29719, 50232 | HP | 8 | 5 | RW1900-248AK (Hook Mount) |
| International 4300, 4600, 4700 and 4900 Low Pro |
| 19.5 x 7.50 | 29195 | HP | 10 | 5 | RW1910-395AK (Hook Mount) |
*For Classic Style change “A” to “C” in model number
Ford F450/F550 19.5” Simulators Kits
| WHEEL SIZE | WHEEL PART # | HP/SP | LUGS | H.H. | AMERICAN* | E-SERIES |
|---|
| Ford F-Super Duty (1998-2004) |
| 19.5 x 6.00 | 29186, 29584, 29745 | HP | 8 | 5 | RW1901-AOK | RW1901-EOK |
| Ford F450 / F550 |
| 19.5 x 6.00 | 29839, 29884, 8C34-1015-DB (F2567) | HP | 10 | 5 | RW1902-AOK | RW1902-EOK |
| Ford Motor Home |
| 19.5 x 6.75 | 29236, 29585 | HP | 8 | 5 | RW1901-336AK | |
| Ford F450 / F550 Motor Home; Ford F53 and F59 |
| 19.5 x 6.75 | 29879 | HP | 10 | 5 | RW19-AF59 | RW19-EF59 |
*For Classic Style change “A” to “C” in model number
NOTE: All Ford 4-wheel simulators include pop-in center
• To add Braided Air Valve Extensions (RW1258) for rear covers, add an “X” before the “K” in the
model number (e.g. RW1906-2AXK)
CHART ABBREVIATIONS: HP/SP = Hub Piloted (33mm) / Stud Piloted (1.5”), H.H. = Hand Holes
1-800-982-1180
www.RealWheels.com

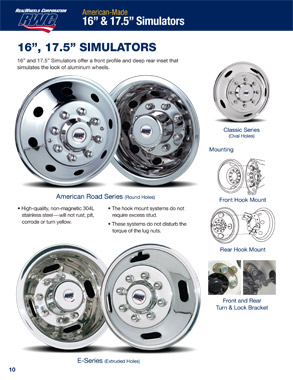

16”, 17.5” SIMULATORS
16” and 17.5” Simulators offer a front profile and deep rear inset that simulates the look of aluminum wheels.
• High-quality, non-magnetic 304L stainless steel — will not rust, pit, corrode or turn yellow.
• The hook mount systems do not require excess stud.
• These systems do not disturb the torque of the lug nuts.
American Road Series (Round Holes)
E-Series (Extruded Holes)
Classic Series (Oval Holes)
Mounting
Front Hook Mount
Rear Hook Mount
Front and Rear Turn & Lock Bracket
American-Made

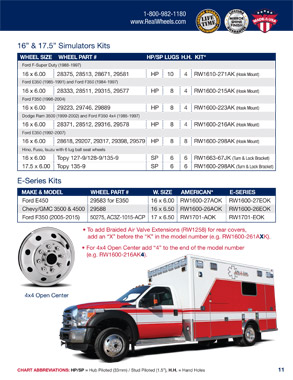

16” & 17.5” Simulators
16” & 17.5” Simulators Kits
| WHEEL SIZE | WHEEL PART # | HP/SP | LUGS | H.H. | KIT* |
|---|
| Ford F-Super Duty (1988-1997) |
| 16 x 6.00 | 28375, 28513, 28671, 29581 | HP | 10 | 4 | RW1610-271AK (Hook Mount) |
| Ford E350 (1985-1991) and Ford F350 (1984-1997) |
| 16 x 6.00 | 28333, 28511, 29315, 29577 | HP | 8 | 4 | RW1600-215AK (Hook Mount) |
| Ford F350 (1998-2004) |
| 16 x 6.00 | 29223, 29746, 29889 | HP | 8 | 4 | RW1600-223AK (Hook Mount) |
| Dodge Ram 3500 (1999-2002) and Ford F350 4x4 (1985-1997) |
| 16 x 6.00 | 28371, 28512, 29316, 29578 | HP | 8 | 4 | RW1600-216AK (Hook Mount) |
| Ford E350 (1992-2007) |
| 16 x 6.00 | 28618, 29207, 29317, 29398, 29579 | HP | 8 | 8 | RW1600-298AK (Hook Mount) |
| Hino, Fuso, Isuzu with 6 lug ball seat wheels |
| 16 x 6.00 | Topy 127-9/128-9/135-9 | SP | 6 | 6 | RW1663-67JK (Turn & Lock Bracket) |
| 17.5 x 6.00 | Topy 135-9 | SP | 6 | 6 | RW1600-298AK (Turn & Lock Bracket) |
E-Series Kits
| MAKE & MODEL | WHEEL PART # | WHEEL SIZE | AMERICAN* | E-SERIES |
|---|
| Ford E450 | 29583 for E350 | 16 x 6.00 | RW1600-27AOK | RW1600-27EOK |
| Chevy/GMC 3500 & 4500 | 29588 | 16 x 6.50 | RW1600-26AOK | RW1600-26EOK |
| Ford F350 (2005-2015) | 50275, AC3Z-1015-ACP | 17 x 6.50 | RW1701-AOK | RW1701-EOK |
• To add Braided Air Valve Extensions (RW1258) for rear covers, add an “X” before the “K” in the model number (e.g. RW1600-261AXK).
• For 4x4 Open Center add “4” to the end of the model number (e.g. RW1600-216AK4).
4x4 Open Center
CHART ABBREVIATIONS: HP/SP = Hub Piloted (33mm) / Stud Piloted (1.5”), H.H. = Hand Holes
1-800-982-1180
www.RealWheels.com
SPRINTER SIMULATORS (Dual Wheel)
2012–Current 3500 (EZ)
2004–2006 3500
2007–2011 3500 (EZ)
2007–2011 3500
| WHEEL SIZE | FITS | MODEL NUMBER | W/ EXTENSIONS KIT |
|---|
| 15” x 6” | 2003 and earlier | RW1500-2SAK14 | RW1500-2SAXK14 |
| 16” x 6” | ’04-’06 3500 | RW1600-2SAK | RW1600-2SAXK |
| 16” x 6” | ’07-’11 3500 | RW1602-3SAK | RW1602-3SAXK |
| 16” x 6” | ’07-’11 3500 (EZ) | RW1602-12SAK | RW1602-12SAXK |
| 16” x 6” | ’12-cur. 3500 (EZ) | RW1602-18SAK | RW1602-18SAXK |
Sprinter simulator design is patterned with the same number of cutouts as the factory wheel and is approved by Daimler Commercial.
• We’ve designed our EZ line of wheel simulators so they are EZ to install, EZ to clean and EZ to maintain. Plus they are offered at a lower price, which makes them EZ to purchase.
• High quality, heavy-gauge stainless steel.
• Patented mounting system — no lug nuts to remove.
• Rear simulators have a new, extremely low center cap design that eliminates obstructions when servicing and creates the easiest wheel simulators to maintain and clean.
RealWheels Product Video Available
American-Made
Solutions For Sprinters
SPRINTER SIMULATORS (Single Wheel)
2007–Current 2500 (EZ)
2004–2006 2500
| SIZE | FITS | MODEL # |
|---|
| 16” x 6” | ’04-’06 2500 | RW1601-3ABK |
| 16” x 6” | ’07-cur. 2500 | RW1603-SAK |
• Cutout patterns match factory wheels for improved air flow!
• Integrated lug nut cover design prevents curbing damage, eliminates missing lug nut covers, and provides easy maintenance.
FORD TRANSIT SIMULATORS & ACCESSORIES
(2014–Current)
| SIZE | FITS | MODEL # | W/ EXTENSIONS KIT |
|---|
| 16” x 6” | Single Wheels | RW1604-TAK | N/A |
| 16” x 6” | Dual Wheels | RW1606-12TAK | RW1606-12TAXK |
• All high quality, heavy-gauge stainless steel.
• Covers install easily — no lug nuts to remove.
Overlays securely adhere with heavy-duty 3M tape.
| DESCRIPTION | MODEL # |
|---|
| 2pc S.S. Hood Vent Overlays | RWG7101-TRHV15 |
| 4pc S.S. Grille Overlay | RWG7100-CTR15 |
| 4pc S.S. Grille Overlay and 2pc S.S. Hood Vent Overlays | RWG7100-DTRV15 |
RealWheels Product Video Available
1-800-982-1180
www.RealWheels.com

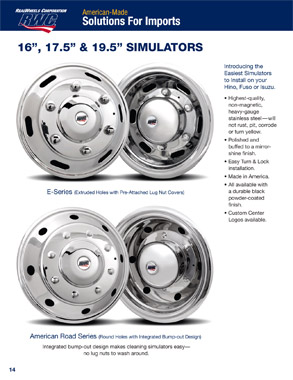

American-Made Solutions For Imports
16”, 17.5” & 19.5” SIMULATORS
Introducing the Easiest Simulators to Install on your Hino, Fuso or Isuzu.
• Highest-quality, non-magnetic, heavy-gauge stainless steel — will not rust, pit, corrode or turn yellow.
• Polished and buffed to a mirror-shine finish.
• Easy Turn & Lock installation.
• Made in America.
• All available with a durable black powder-coated finish.
• Custom Center Logos available.
E-Series (Extruded Holes with Pre-Attached Lug Nut Covers)
American Road Series (Round Holes with Integrated Bump-out Design)
Integrated bump-out design makes cleaning simulators easy— no lug nuts to wash around.
14

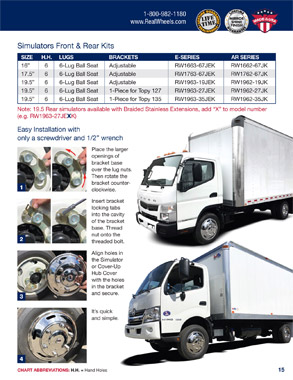

Simulators Front & Rear Kits
SIZE H.H. LUGS BRACKETS E-SERIES AR SERIES
16” 6 6-Lug Ball Seat Adjustable RW1663-67JEK RW1662-67JK
17.5” 6 6-Lug Ball Seat Adjustable RW1763-67JEK RW1762-67JK
19.5” 6 6-Lug Ball Seat Adjustable RW1963-19JEK RW1962-19JK
19.5” 6 6-Lug Ball Seat 1-Piece for Topy 127 RW1963-27JEK RW1962-27JK
19.5” 6 6-Lug Ball Seat 1-Piece for Topy 135 RW1963-35JEK RW1962-35JK
Note: 19.5 Rear simulators available with Braided Stainless Extensions, add “X” to model number (e.g. RW1963-27JEXK)
Easy Installation with only a screwdriver and 1/2” wrench
1. Place the larger openings of bracket base over the lug nuts.
2. Then rotate the bracket counter-clockwise.
Insert bracket locking tabs into the cavity of the bracket base. Thread nut onto the threaded bolt.
3. Align holes in the Simulator or Cover-Up Hub Cover with the holes in the bracket and secure.
4. It’s quick and simple.
CHART ABBREVIATIONS: H.H. = Hand Holes
15
1-800-982-1180
www.RealWheels.com

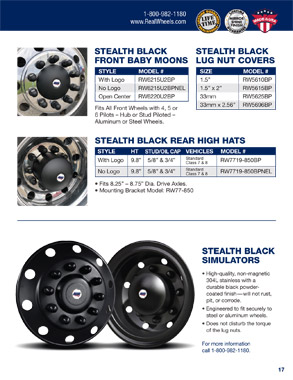

NEW! Stealth Series
High-quality 304L stainless steel with a durable black powder-coated finish.
American-Made
Black Powder-Coated Accessories
STEALTH BLACK FRONT BABY MOONS
| STYLE | MODEL # |
|---|
| With Logo | RW6215U2BP |
| No Logo | RW6215U2BPNEL |
| Open Center | RW6220U2BP |
Fits All Front Wheels with 4, 5 or 6 Pilots – Hub or Stud Piloted – Aluminum or Steel Wheels.
STEALTH BLACK LUG NUT COVERS
| SIZE | MODEL # |
|---|
| 1.5” | RW5610BP |
| 1.5” x 2” | RW5615BP |
| 33mm | RW5625BP |
| 33mm x 2.56” | RW5696BP |
STEALTH BLACK REAR HIGH HATS
| STYLE | HT | STUD/OIL CAP | VEHICLES | MODEL # |
|---|
| With Logo | 9.8” | 5/8” & 3/4” | Standard Class 7 & 8 | RW7719-850BP |
| No Logo | 9.8” | 5/8” & 3/4” | Standard Class 7 & 8 | RW7719-850BPNEL |
• Fits 8.25” – 8.75” Dia. Drive Axles.
• Mounting Bracket Model: RW77-850
STEALTH BLACK SIMULATORS
• High-quality, non-magnetic 304L stainless with a durable black powder-coated finish — will not rust, pit, or corrode.
• Engineered to fit securely to steel or aluminum wheels.
• Does not disturb the torque of the lug nuts.
For more information call 1-800-982-1180.
1-800-982-1180
www.RealWheels.com
Lug Nut Covers
LUG CHECK™
Lug Check Loose Lug Nut Cover Indicators allow for quick and easy visual inspection.
IMPROVED DESIGN!
The only lug nut cover that provides safety, good looks, and a lug nut indicator.
• Fits 33mm lug nuts.
• Optional logo and reflective inserts available. Call for more Info.
• High-quality, chrome plated ABS.
Your Company Logo Here
Optional Reflectors Dramatically Increase Visibility
Without / With
DESCRIPTION MODEL #
33mm Lug Nut Cover (Only) RW5810
Lug Nut Cover w/ Black Indicator RW5810B
Lug Nut Cover w/ Black Indicator (10 Pack) RW5810BK
Lug Nut Cover w/ Yellow Indicator RW5810Y
Lug Nut Cover w/ Yellow Indicator (10 Pack) RW5810YK
Black Loose Lug Nut Indicator (Only) RW1273B
Yellow Loose Lug Nut Indicator (Only) RW1273Y
SAFE
Vibration and bolt fatigue are the leading causes of self-loosening wheel lug nuts and joint failure.
UNSAFE
The Lug Check helps detect a loosened lug nut without having a trained eye.
RW5810BK
Attractively Packaged. Includes 10 Lug Nut Covers and 10 Loose Lug Nut Indicators.
18
Lug Nut Covers
Lug Nut Covers are available for most popular lug nut sizes and shapes.
If you don’t see it, contact us at 800-982-1180 for additional sizes.
RW5510
Adjustable Lug Nut Pullers
Adjusts from 1/2” to 1-3/4”. They help remove lug nut covers without scratches or denting.
CHROME PLASTIC
RW5802
33mm with 2” flange
Height: 2½”
RW5801
1½” with 2 3⁄16” flange
Height: 2 3⁄4”
RW5805
33mm w/ flange
Height: 3 1⁄8”
RW5804
1¼”
Height: 2”
RW5800
1½”
Height: 2¼”
RW5810
33mm chrome plastic
(works with Lug Check, see p.18)
Height: 2 3⁄8”
STAINLESS STEEL
RW5696
33mm w/ flange
Height: 2 9⁄16”
RW5612
1½” with skirt
Height: 2”
RW5610
1½”
Height: 1 5⁄8”
RW5615
1½”
Height: 2”
RW5630
41mm with skirt
Height: 1 7⁄8”
RW5620
32mm with flange
Height: 1 3⁄4”
RW5625
33mm with flange
Height: 2”
RW5618
30mm with flange
Height: 2”
RW5605
1” with skirt
Height: 1¼”
RW5600
Ford F450/F550 1999-2004,
13⁄16” with flange
Height: 1 9⁄16”
RW5601
Ford F450/F550 2005-current,
13⁄16” with flange
Height: 1 9⁄16”
RW5602
Dodge 4500/5500 2018-current,
7⁄8” with flange
Height: 1 9⁄16”
RW5603
Dodge 4500/5500 2018-current,
1 1⁄16” with flange
Height: 1 9⁄16”

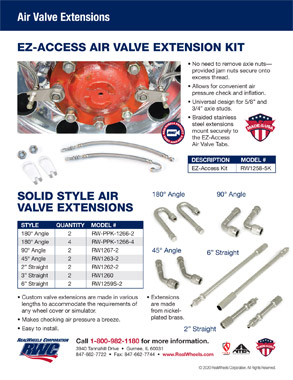

Air Valve Extensions
EZ-ACCESS AIR VALVE EXTENSION KIT
• No need to remove axle nuts—provided jam nuts secure onto excess thread.
• Allows for convenient air pressure check and inflation.
• Universal design for 5/8” and 3/4” axle studs.
• Braided stainless steel extensions mount securely to the EZ-Access Air Valve Tabs.
DESCRIPTION MODEL #
EZ-Access Kit RW1258-5K
RealWheels Product Video Available
SOLID STYLE AIR VALVE EXTENSIONS
STYLE QUANTITY MODEL #
180° Angle 2 RW-PPK-1266-2
180° Angle 4 RW-PPK-1266-4
90° Angle 2 RW1267-2
45° Angle 2 RW1263-2
2” Straight 2 RW1262-2
3” Straight 2 RW1260
6” Straight 2 RW1259S-2
• Custom valve extensions are made in various lengths to accommodate the requirements of any wheel cover or simulator.
• Makes checking air pressure a breeze.
• Easy to install.
• Extensions are made from nickel-plated brass.
180° Angle
90° Angle
45° Angle
6” Straight
2” Straight
Call 1-800-982-1180 for more information.
3940 Tannahill Drive • Gurnee, IL 60031
847-662-7722 • Fax: 847-662-7744 • www.RealWheels.com
Copyright ©2020 RealWheels Corporation. All rights reserved.
