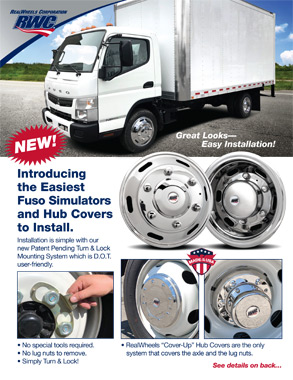

Introducing the Easiest Fuso Simulators and Hub Covers to Install.
Installation is simple with our new Patent Pending Turn & Lock Mounting System which is D.O.T. user-friendly.
New! Great Looks—Easy Installation!
• No special tools required.
• No lug nuts to remove.
• Simply Turn & Lock!
• RealWheels “Cover-Up” Hub Covers are the only system that covers the axle and the lug nuts.
See details on back…

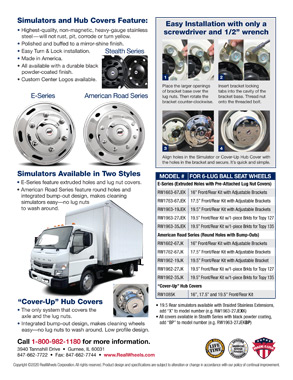

Simulators and Hub Covers Feature:
• Highest-quality, non-magnetic, heavy-gauge stainless steel — will not rust, pit, corrode or turn yellow.
• Polished and buffed to a mirror-shine finish.
• Easy Turn & Lock installation.
• Made in America.
• All available with a durable black powder-coated finish.
• Custom Center Logos available.
Stealth Series
E-Series
American Road Series
Simulators Available in Two Styles
• E-Series feature extruded holes and lug nut covers.
• American Road Series feature round holes and integrated bump-out design makes cleaning simulators easy—no lug nuts to wash around.
“Cover-Up” Hub Covers
• The only system that covers the axle and the lug nuts.
• Integrated bump-out design, makes cleaning wheels easy—no lug nuts to wash around. Low profile design.
Easy Installation with only a screwdriver and 1/2” wrench
1. Place the larger openings of bracket base over the lug nuts. Then rotate the bracket counter-clockwise.
2. Insert bracket locking tabs into the cavity of the bracket base. Thread nut onto the threaded bolt.
3. Align holes in the Simulator or Cover-Up Hub Cover with the holes in the bracket and secure. It’s quick and simple.
Model Number For 6-Lug Ball Seat Wheels
E-Series (Extruded Holes with Pre-Attached Lug Nut Covers)
RW1663-67JEK 16” Front/Rear Kit with Adjustable Brackets
RW1763-67JEK 17.5” Front/Rear Kit with Adjustable Brackets
RW1963-19JEK 19.5” Front/Rear Kit with Adjustable Brackets
RW1963-27JEK 19.5” Front/Rear Kit with 1-piece Brackets for Topy 127
RW1963-35JEK 19.5” Front/Rear Kit with 1-piece Brackets for Topy 135
American Road Series (Round Holes with Bump-Outs)
RW1662-67JK 16” Front/Rear Kit with Adjustable Brackets
RW1762-67JK 17.5” Front/Rear Kit with Adjustable Brackets
RW1962-19JK 19.5” Front/Rear Kit with Adjustable Bracket
RW1962-27JK 19.5” Front/Rear Kit with 1-piece Brackets for Topy 127
RW1962-35JK 19.5” Front/Rear Kit with 1-piece Brackets for Topy 135
“Cover-Up” Hub Covers
RW1085K 16”, 17.5” and 19.5” Front/Rear Kit
• 19.5 Rear simulators available with Braided Stainless Extensions, add “X” to model number (e.g. RW1963-27JEXK)
• All covers available in Stealth Series with black powder coating, add “BP” to model number (e.g. RW1963-27JEKBP)
Call 1-800-982-1180 for more information.
3940 Tannahill Drive • Gurnee, IL 60031
847-662-7722 • Fax: 847-662-7744 • www.RealWheels.com
Copyright ©2020 RealWheels Corporation. All rights reserved. Product design and specifications are subject to alteration or change in accordance with our policy of continual improvement.
