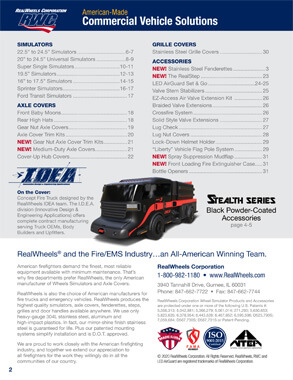

RealWheels Corporation
Fire and EMS Vehicle Accessory Catalog
We Don’t Make Your Vehicles…
We Make Your Vehicles Look and Perform Better!
American-Made Commercial Vehicle Solutions
SIMULATORS
| 22.5” to 24.5” Simulators | 6-7 |
| 20” to 24.5” Universal Simulators | 8-9 |
| Super Single Simulators | 10-11 |
| 19.5” Simulators | 12-13 |

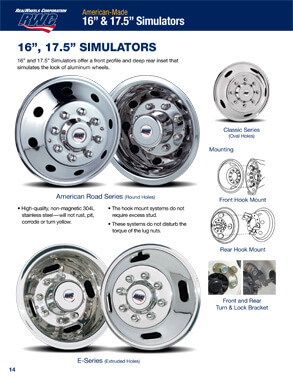

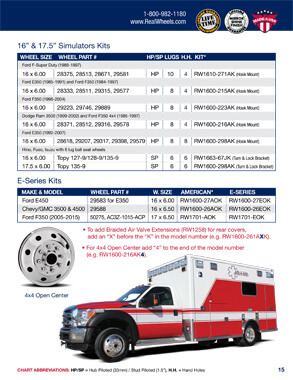

| 16” to 17.5” Simulators | 14-15 |

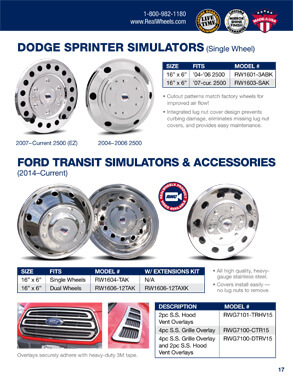

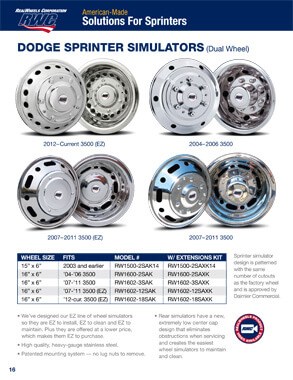

| Sprinter Simulators | 16-17 |
| Ford Transit Simulators | 17 |
AXLE COVERS

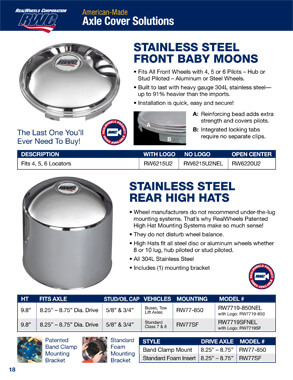

| Front Baby Moons | 18 |
| Rear High Hats | 18 |

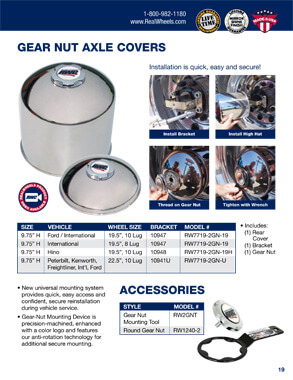

| Gear Nut Axle Covers | 19 |

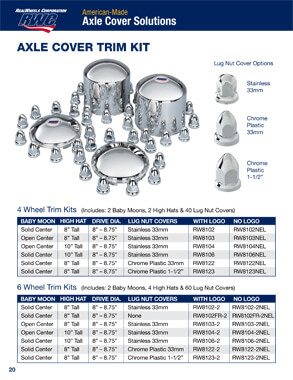

| Axle Cover Trim Kits | 20 |

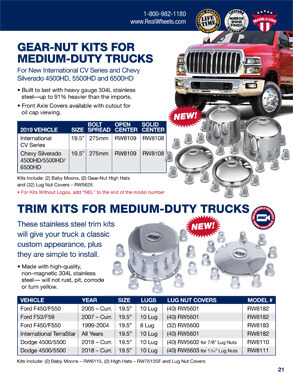

| NEW! Gear Nut Axle Cover Trim Kits | 21 |
| NEW! Medium-Duty Axle Covers | 21 |

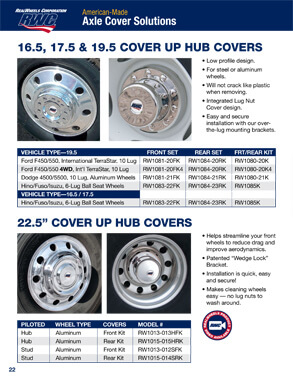

| Cover-Up Hub Covers | 22 |
GRILLE COVERS

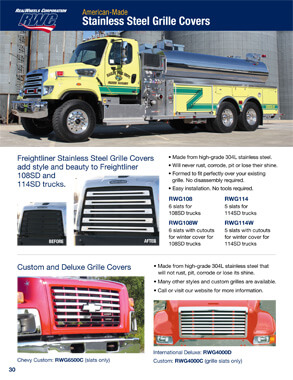

| Stainless Steel Grille Covers | 30 |
ACCESSORIES
| NEW! Stainless Steel Fenderettes | 3 |

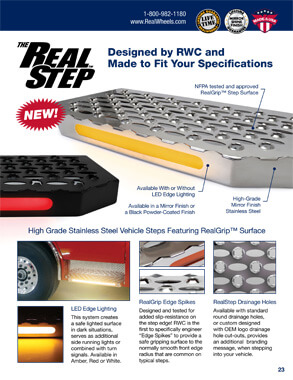

| NEW! The RealStep | 23 |

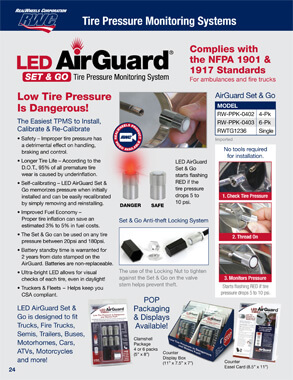

| LED AirGuard Set & Go | 24-25 |
| Valve Stem Stabilizers | 25 |

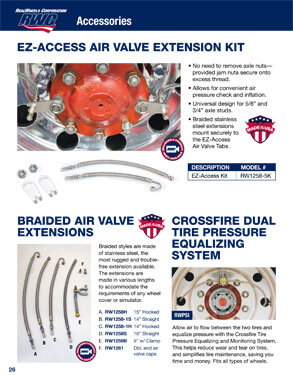

| EZ-Access Air Valve Extension Kit | 26 |
| Braided Valve Extensions | 26 |
| Crossfire System | 26 |

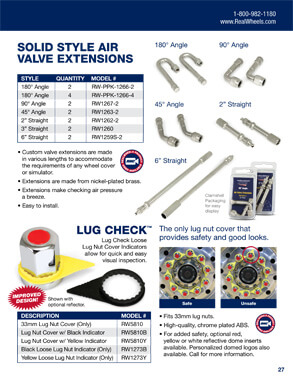

| Solid Style Valve Extensions | 27 |
| Lug Check | 27 |

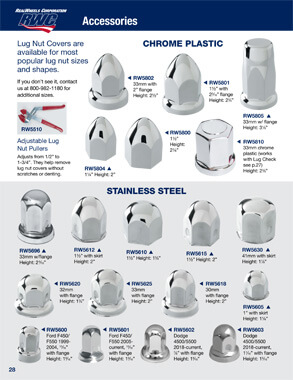

| Lug Nut Covers | 28 |

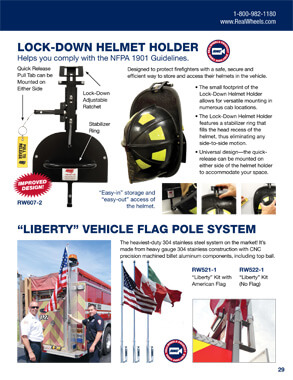

| Lock-Down Helmet Holder | 29 |
| “Liberty” Vehicle Flag Pole System | 29 |

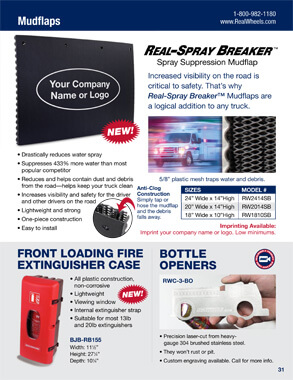

| NEW! Spray Suppression Mudflap | 31 |
| NEW! Front Loading Fire Extinguisher Case | 31 |
| Bottle Openers | 31 |
On the Cover:
Concept Fire Truck designed by the RealWheels IDEA team. The I.D.E.A. division (Innovative Design & Engineering Applications) offers complete contract manufacturing serving Truck OEMs, Body Builders and Upfitters.
Stealth Series
Black Powder-Coated Accessories
page 4-5
RealWheels® and the Fire/EMS Industry…an All-American Winning Team.
American firefighters demand the finest, most reliable equipment available with minimum maintenance. That’s why fire departments prefer RealWheels, the only American manufacturer of Wheels Simulators and Axle Covers.
RealWheels is also the choice of American manufacturers for fire trucks and emergency vehicles. RealWheels produces the highest quality simulators, axle covers, fenderettes, steps, grilles and door handles available anywhere. We use only heavy-gauge 304L stainless steel, aluminum and high-impact plastics. In fact, our mirror-shine finish stainless steel is guaranteed for life. Plus our patented mounting systems simplify installation and is D.O.T. approved.
We are proud to work closely with the American firefighting industry, and together we extend our appreciation to all firefighters for the work they willingly do in all the communities of our country.
RealWheels Corporation
1-800-982-1180 • www.RealWheels.com
3940 Tannahill Drive, Gurnee, IL 60031
Phone: 847-662-7722 • Fax: 847-662-7744
RealWheels Corporation Wheel Simulator Products and Accessories are protected under one or more of the following U.S. Patents #:
5,358,313; 5,042,881; 5,366,279; 5,061,014; 271,293; 5,630,653; 5,823,635; 6,378,954; 6,443,528; 6,467,852; 6,595,596; D523,790S; 7,059,684; D567,730S; D567,731S or Patent Pending.
Made in the USA
ISO 9001:2015 Certified
© 2020 RealWheels Corporation. All Rights Reserved. RealWheels, RWC and LED AirGuard are registered trademarks of RealWheels Corporation.

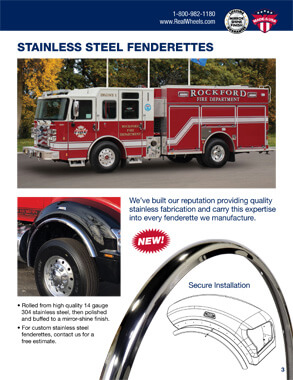

STAINLESS STEEL FENDERETTES
We’ve built our reputation providing quality stainless fabrication and carry this expertise into every fenderette we manufacture.
NEW!
• Rolled from high quality 14 gauge 304 stainless steel, then polished and buffed to a mirror-shine finish.
• For custom stainless steel fenderettes, contact us for a free estimate.
Secure Installation
1-800-982-1180
www.RealWheels.com

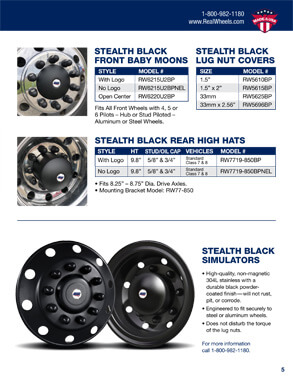

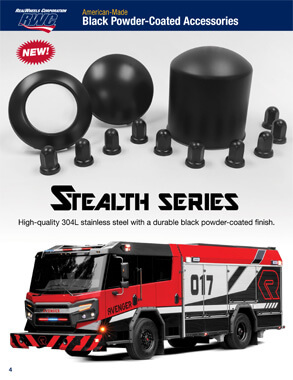

NEW! Stealth Series
High-quality 304L stainless steel with a durable black powder-coated finish.
American-Made
Black Powder-Coated Accessories
STEALTH BLACK FRONT BABY MOONS
| STYLE | MODEL # |
|---|
| With Logo | RW6215U2BP |
| No Logo | RW6215U2BPNEL |
| Open Center | RW6220U2BP |
Fits All Front Wheels with 4, 5 or 6 Pilots – Hub or Stud Piloted – Aluminum or Steel Wheels.
STEALTH BLACK LUG NUT COVERS
| SIZE | MODEL # |
|---|
| 1.5” | RW5610BP |
| 1.5” x 2” | RW5615BP |
| 33mm | RW5625BP |
| 33mm x 2.56” | RW5696BP |
STEALTH BLACK REAR HIGH HATS
| STYLE | HT | STUD/OIL CAP | VEHICLES | MODEL # |
|---|
| With Logo | 9.8” | 5/8” & 3/4” | Standard Class 7 & 8 | RW7719-850BP |
| No Logo | 9.8” | 5/8” & 3/4” | Standard Class 7 & 8 | RW7719-850BPNEL |
• Fits 8.25” – 8.75” Dia. Drive Axles.
• Mounting Bracket Model: RW77-850
STEALTH BLACK SIMULATORS
• High-quality, non-magnetic 304L stainless with a durable black powder-coated finish — will not rust, pit, or corrode.
• Engineered to fit securely to steel or aluminum wheels.
• Does not disturb the torque of the lug nuts.
For more information call 1-800-982-1180.
1-800-982-1180
www.RealWheels.com

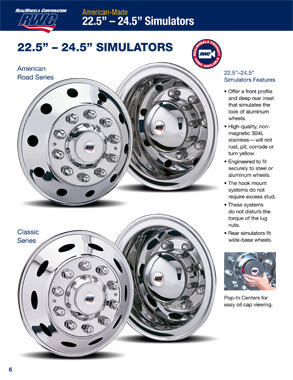

22.5” – 24.5” SIMULATORS
American Road Series
Classic Series
22.5”–24.5” Simulators Features
• Offer a front profile and deep rear inset that simulates the look of aluminum wheels.
• High-quality, nonmagnetic 304L stainless — will not rust, pit, corrode or turn yellow.
• Engineered to fit securely to steel or aluminum wheels.
• The hook mount systems do not require excess stud.
• These systems do not disturb the torque of the lug nuts.
• Rear simulators fit wide-base wheels.
Pop-In Centers for easy oil cap viewing.
RealWheels Product Video Available
American-Made
22.5” – 24.5” Simulators

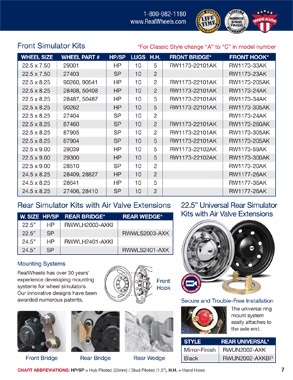

Front Simulator Kits
| WHEEL SIZE | WHEEL PART # | HP/SP | H.H. | LUGS | FRONT BRIDGE* | FRONT HOOK* |
|---|
| 22.5 x 7.50 | 29001 | HP | 10 | 5 | RW1173-22101AK | RW1173-33AK |
| 22.5 x 7.50 | 27403 | SP | 10 | 2 | | RW1173-23AK |
| 22.5 x 8.25 | 90260, 90541 | HP | 10 | 2 | RW1173-22101AK | RW1173-205AK |
| 22.5 x 8.25 | 28408, 50408 | HP | 10 | 2 | RW1173-22101AK | RW1173-24AK |
| 22.5 x 8.25 | 28487, 50487 | HP | 10 | 5 | RW1173-22101AK | RW1173-34AK |
| 22.5 x 8.25 | 90262 | HP | 10 | 5 | RW1173-22101AK | RW1173-305AK |
| 22.5 x 8.25 | 27404 | SP | 10 | 2 | | RW1173-24AK |
| 22.5 x 8.25 | 87460 | SP | 10 | 2 | RW1173-22101AK | RW1173-260AK |
| 22.5 x 8.25 | 87905 | SP | 10 | 2 | RW1173-22101AK | RW1173-305AK |
| 22.5 x 8.25 | 87904 | SP | 10 | 5 | RW1173-22101AK | RW1173-205AK |
| 22.5 x 9.00 | 29039 | HP | 10 | 5 | RW1173-22102AK | RW1173-59AK |
| 22.5 x 9.00 | 29300 | HP | 10 | 5 | RW1173-22102AK | RW1173-300AK |
| 22.5 x 9.00 | 28510 | SP | 10 | 2 | | RW1173-20AK |
| 24.5 x 8.25 | 28409, 28827 | HP | 10 | 2 | | RW1177-26AK |
| 24.5 x 8.25 | 28641 | HP | 10 | 5 | | RW1177-36AK |
| 24.5 x 8.25 | 27406, 28410 | SP | 10 | 2 | | RW1177-26AK |
*For Classic Style change “A” to “C” in model number
Rear Simulator Kits with Air Valve Extensions
| WHEEL SIZE | HP/SP | REAR BRIDGE* | REAR WEDGE* |
|---|
| 22.5” | HP | RWWLH2003-AXKI | |
| 22.5” | SP | | RWWLS2003-AXK |
| 24.5” | HP | RWWLH2401-AXKI | |
| 24.5” | SP | | RWWLS2401-AXK |
Mounting Systems
RealWheels has over 30 years’ experience developing mounting systems for wheel simulators. Our innovative designs have been awarded numerous patents.
- Front Hook
- Front Bridge
- Rear Bridge
- Rear Wedge
22.5” Universal Rear Simulator Kits with Air Valve Extensions
Secure and Trouble-Free Installation
The universal ring mount system easily attaches to the axle end.
| STYLE | REAR UNIVERSAL* |
|---|
| Mirror-Finish | RWUN2002-AXK |
| Black | RWUN2002-AXKBP |
RealWheels Product Video Available
CHART ABBREVIATIONS: HP/SP = Hub Piloted (33mm) / Stud Piloted (1.5”), H.H. = Hand Holes
1-800-982-1180
www.RealWheels.com

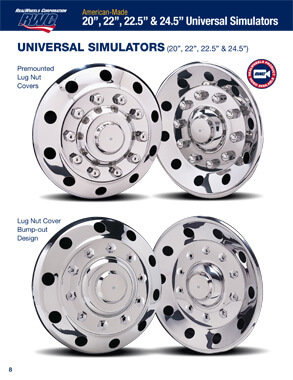

UNIVERSAL SIMULATORS (20”, 22”, 22.5” & 24.5”)
Premounted Lug Nut Covers
Lug Nut Cover Bump-out Design
RealWheels Product Video Available
American-Made
20”, 22”, 22.5” & 24.5” Universal Simulators

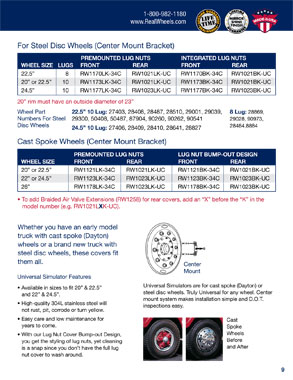

For Steel Disc Wheels (Center Mount Bracket)
| | PREMOUNTED LUG NUTS | INTEGRATED LUG NUTS |
|---|
| WHEEL SIZE | LUGS | FRONT | REAR | FRONT | REAR |
|---|
| 22.5” | 8 | RW1170LK-34C | RW1021LK-UC | RW1170BK-34C | RW1021BK-UC |
| 20” or 22.5” | 10 | RW1173LK-34C | RW1021LK-UC | RW1173BK-34C | RW1021BK-UC |
| 24.5” | 10 | RW1177LK-34C | RW1023LK-UC | RW1177BK-34C | RW1023BK-UC |
20” rim must have an outside diameter of 23”
Wheel Part Numbers For Steel Disc Wheels
22.5” 10 Lug: 27403, 28408, 28487, 28510, 29001, 29039, 29300, 50408, 50487, 87904, 90260, 90262, 90541
24.5” 10 Lug: 27406, 28409, 28410, 28641, 28827
8 Lug: 28869, 29028, 90973, 28484,8884
Cast Spoke Wheels (Center Mount Bracket)
| | PREMOUNTED LUG NUTS | LUG NUT BUMP-OUT DESIGN |
|---|
| WHEEL SIZE | FRONT | REAR | FRONT | REAR |
|---|
| 20” or 22.5” | RW1121LK-34C | RW1021LK-UC | RW1121BK-34C | RW1021BK-UC |
| 22” or 24.5” | RW1123LK-34C | RW1023LK-UC | RW1123BK-34C | RW1023BK-UC |
| 26” | RW1178LK-34C | RW1023LK-UC | RW1178BK-34C | RW1023BK-UC |
• To add Braided Air Valve Extensions (RW1258) for rear covers, add an “X” before the “K” in the model number (e.g. RW1021LXK-UC).
Whether you have an early model truck with cast spoke (Dayton) wheels or a brand new truck with steel disc wheels, these covers fit them all.
Universal Simulator Features
• Available in sizes to fit 20” & 22.5” and 22” & 24.5”.
• High-quality 304L stainless steel will not rust, pit, corrode or turn yellow.
• Easy care and low maintenance for years to come.
• With our Lug Nut Cover Bump-out Design, you get the styling of lug nuts, yet cleaning is a snap since you don’t have the full lug nut cover to wash around.
Center Mount
Universal Simulators are for cast spoke (Dayton) or steel disc wheels. Truly Universal for any wheel. Center mount system makes installation simple and D.O.T. inspections easy.
Cast Spoke Wheels
Before and After
1-800-982-1180
www.RealWheels.com

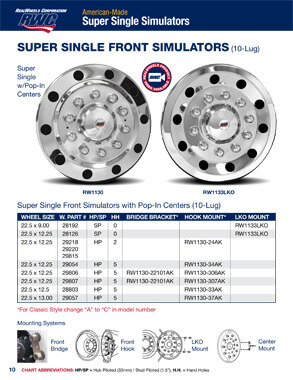

SUPER SINGLE FRONT SIMULATORS (10-Lug)
Super Single w/Pop-In Centers
RealWheels Product Video Available
RW1130
RW1133LKO
Super Single Front Simulators with Pop-In Centers (10-Lug)
| WHEEL SIZE | WHEEL PART NUMBER | HP/SP | HH | BRIDGE BRACKET* | HOOK MOUNT* | LKO MOUNT |
|---|
| 22.5 x 9.00 | 28192 | SP | 0 | | | RW1133LKO |
| 22.5 x 12.25 | 28126 | SP | 0 | | | RW1133LKO |
| 22.5 x 12.25 | 29218, 29220, 29815 | HP | 2 | | RW1130-24AK | |
| 22.5 x 12.25 | 29054 | HP | 5 | | RW1130-34AK | |
| 22.5 x 12.25 | 29806 | HP | 5 | RW1130-22101AK | RW1130-306AK | |
| 22.5 x 12.25 | 29807 | HP | 5 | RW1130-22101AK | RW1130-307AK | |
| 22.5 x 12.5 | 28803 | HP | 5 | | RW1130-33AK | |
| 22.5 x 13.00 | 29057 | HP | 5 | | RW1130-37AK | |
*For Classic Style change “A” to “C” in model number
Mounting Systems
Front Hook
LKO Mount
Center Mount
Front Bridge
CHART ABBREVIATIONS: HP/SP = Hub Piloted (33mm) / Stud Piloted (1.5”), H.H. = Hand Holes
American-Made
Super Single Simulators

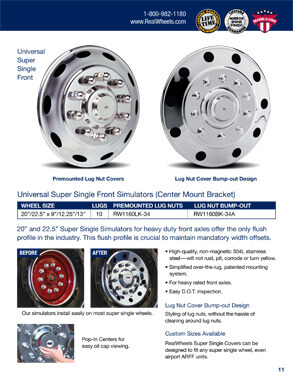

Universal Super Single Front
Premounted Lug Nut Covers
Lug Nut Cover Bump-out Design
Universal Super Single Front Simulators (Center Mount Bracket)
| WHEEL SIZE | LUGS | PREMOUNTED LUG NUTS | LUG NUT BUMP-OUT |
|---|
| 20”/22.5” x 9”/12.25”/13” | 10 | RW1160LK-34 | RW1160BK-34A |
20” and 22.5” Super Single Simulators for heavy duty front axles offer the only flush profile in the industry. This flush profile is crucial to maintain mandatory width offsets.
• High-quality, non-magnetic 304L stainless steel — will not rust, pit, corrode or turn yellow.
• Simplified over-the-lug, patented mounting system.
• For heavy rated front axles.
• Easy D.O.T. inspection.
Lug Nut Cover Bump-out Design
Styling of lug nuts, without the hassle of cleaning around lug nuts.
Custom Sizes Available
RealWheels Super Single Covers can be designed to fit any super single wheel, even airport ARFF units.
BEFORE / AFTER
Our simulators install easily on most super single wheels.
Pop-In Centers for easy oil cap viewing.
1-800-982-1180
www.RealWheels.com

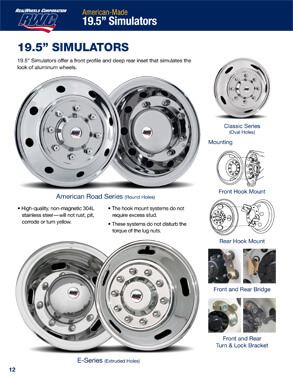

19.5” SIMULATORS
19.5” Simulators offer a front profile and deep rear inset that simulates the look of aluminum wheels.
American Road Series (Round Holes)
• High-quality, non-magnetic 304L stainless steel — will not rust, pit, corrode or turn yellow.
• The hook mount systems do not require excess stud.
• These systems do not disturb the torque of the lug nuts.
E-Series (Extruded Holes)
Classic Series (Oval Holes)
Mounting
- Front Hook Mount
- Rear Hook Mount
- Front and Rear Bridge
- Front and Rear Turn & Lock Bracket
American-Made

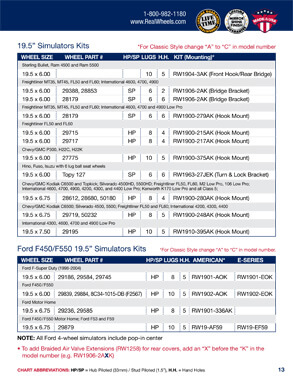

19.5” Simulators
19.5” Simulators Kits
| WHEEL SIZE | WHEEL PART # | HP/SP | LUGS | H.H. | KIT (Mounting)* |
|---|
| Sterling Bullet, Ram 4500 and Ram 5500 |
| 19.5 x 6.00 | | | 10 | 5 | RW1904-3AK (Front Hook/Rear Bridge) |
| Freightliner MT35, MT45, FL50 and FL60; International 4600, 4700, 4900 |
| 19.5 x 6.00 | 29388, 28853 | SP | 6 | 2 | RW1906-2AK (Bridge Bracket) |
| 19.5 x 6.00 | 28179 | SP | 6 | 6 | RW1906-2AK (Bridge Bracket) |
| Freightliner MT35, MT45, FL50 and FL60; International 4600, 4700 and 4900 Low Pro |
| 19.5 x 6.00 | 28179 | SP | 6 | 6 | RW1900-279AK (Hook Mount) |
| Freightliner FL50 and FL60 |
| 19.5 x 6.00 | 29715 | HP | 8 | 4 | RW1900-215AK (Hook Mount) |
| 19.5 x 6.00 | 29717 | HP | 8 | 4 | RW1900-217AK (Hook Mount) |
| Chevy/GMC P300, H22C, H22K |
| 19.5 x 6.00 | 27775 | HP | 10 | 5 | RW1900-375AK (Hook Mount) |
| Hino, Fuso, Isuzu with 6 lug ball seat wheels |
| 19.5 x 6.00 | Topy 127 | SP | 6 | 6 | RW1963-27JEK (Turn & Lock Bracket) |
| Chevy/GMC Kodiak C6500 and Topkick; Silverado 4500HD, 5500HD; Freightliner FL50, FL60, M2 Low Pro, 106 Low Pro; International 4600, 4700, 4900, 4200, 4300, and 4400 Low Pro; Kenworth K170 Low Pro and all Class 5; |
| 19.5 x 6.75 | 28612, 28680, 50180 | HP | 8 | 4 | RW1900-280AK (Hook Mount) |
| Chevy/GMC Kodiak C6500; Silverado 4500, 5500; Freightliner FL50 and FL60; International 4200, 4300, 4400 |
| 19.5 x 6.75 | 29719, 50232 | HP | 8 | 5 | RW1900-248AK (Hook Mount) |
| International 4300, 4600, 4700 and 4900 Low Pro |
| 19.5 x 7.50 | 29195 | HP | 10 | 5 | RW1910-395AK (Hook Mount) |
*For Classic Style change “A” to “C” in model number
Ford F450/F550 19.5” Simulators Kits
| WHEEL SIZE | WHEEL PART # | HP/SP | LUGS | H.H. | AMERICAN* | E-SERIES |
|---|
| Ford F-Super Duty (1998-2004) |
| 19.5 x 6.00 | 29186, 29584, 29745 | HP | 8 | 5 | RW1901-AOK | RW1901-EOK |
| Ford F450 / F550 |
| 19.5 x 6.00 | 29839, 29884, 8C34-1015-DB (F2567) | HP | 10 | 5 | RW1902-AOK | RW1902-EOK |
| Ford Motor Home |
| 19.5 x 6.75 | 29236, 29585 | HP | 8 | 5 | RW1901-336AK | |
| Ford F450 / F550 Motor Home; Ford F53 and F59 |
| 19.5 x 6.75 | 29879 | HP | 10 | 5 | RW19-AF59 | RW19-EF59 |
*For Classic Style change “A” to “C” in model number
NOTE: All Ford 4-wheel simulators include pop-in center
• To add Braided Air Valve Extensions (RW1258) for rear covers, add an “X” before the “K” in the
model number (e.g. RW1906-2AXK)
CHART ABBREVIATIONS: HP/SP = Hub Piloted (33mm) / Stud Piloted (1.5”), H.H. = Hand Holes
1-800-982-1180
www.RealWheels.com
16”, 17.5” SIMULATORS
16” and 17.5” Simulators offer a front profile and deep rear inset that simulates the look of aluminum wheels.
• High-quality, non-magnetic 304L stainless steel — will not rust, pit, corrode or turn yellow.
• The hook mount systems do not require excess stud.
• These systems do not disturb the torque of the lug nuts.
American Road Series (Round Holes)
E-Series (Extruded Holes)
Classic Series (Oval Holes)
Mounting
Front Hook Mount
Rear Hook Mount
Front and Rear Turn & Lock Bracket
American-Made
16” & 17.5” Simulators
16” & 17.5” Simulators Kits
| WHEEL SIZE | WHEEL PART # | HP/SP | LUGS | H.H. | KIT* |
|---|
| Ford F-Super Duty (1988-1997) |
| 16 x 6.00 | 28375, 28513, 28671, 29581 | HP | 10 | 4 | RW1610-271AK (Hook Mount) |
| Ford E350 (1985-1991) and Ford F350 (1984-1997) |
| 16 x 6.00 | 28333, 28511, 29315, 29577 | HP | 8 | 4 | RW1600-215AK (Hook Mount) |
| Ford F350 (1998-2004) |
| 16 x 6.00 | 29223, 29746, 29889 | HP | 8 | 4 | RW1600-223AK (Hook Mount) |
| Dodge Ram 3500 (1999-2002) and Ford F350 4x4 (1985-1997) |
| 16 x 6.00 | 28371, 28512, 29316, 29578 | HP | 8 | 4 | RW1600-216AK (Hook Mount) |
| Ford E350 (1992-2007) |
| 16 x 6.00 | 28618, 29207, 29317, 29398, 29579 | HP | 8 | 8 | RW1600-298AK (Hook Mount) |
| Hino, Fuso, Isuzu with 6 lug ball seat wheels |
| 16 x 6.00 | Topy 127-9/128-9/135-9 | SP | 6 | 6 | RW1663-67JK (Turn & Lock Bracket) |
| 17.5 x 6.00 | Topy 135-9 | SP | 6 | 6 | RW1600-298AK (Turn & Lock Bracket) |
E-Series Kits
| MAKE & MODEL | WHEEL PART # | WHEEL SIZE | AMERICAN* | E-SERIES |
|---|
| Ford E450 | 29583 for E350 | 16 x 6.00 | RW1600-27AOK | RW1600-27EOK |
| Chevy/GMC 3500 & 4500 | 29588 | 16 x 6.50 | RW1600-26AOK | RW1600-26EOK |
| Ford F350 (2005-2015) | 50275, AC3Z-1015-ACP | 17 x 6.50 | RW1701-AOK | RW1701-EOK |
• To add Braided Air Valve Extensions (RW1258) for rear covers, add an “X” before the “K” in the model number (e.g. RW1600-261AXK).
• For 4x4 Open Center add “4” to the end of the model number (e.g. RW1600-216AK4).
4x4 Open Center
CHART ABBREVIATIONS: HP/SP = Hub Piloted (33mm) / Stud Piloted (1.5”), H.H. = Hand Holes
1-800-982-1180
www.RealWheels.com
DODGE SPRINTER SIMULATORS (Dual Wheel)
2012–Current 3500 (EZ)
2004–2006 3500
2007–2011 3500 (EZ)
2007–2011 3500
| WHEEL SIZE | FITS | MODEL NUMBER | W/ EXTENSIONS KIT |
|---|
| 15” x 6” | 2003 and earlier | RW1500-2SAK14 | RW1500-2SAXK14 |
| 16” x 6” | ’04-’06 3500 | RW1600-2SAK | RW1600-2SAXK |
| 16” x 6” | ’07-’11 3500 | RW1602-3SAK | RW1602-3SAXK |
| 16” x 6” | ’07-’11 3500 (EZ) | RW1602-12SAK | RW1602-12SAXK |
| 16” x 6” | ’12-cur. 3500 (EZ) | RW1602-18SAK | RW1602-18SAXK |
Sprinter simulator design is patterned with the same number of cutouts as the factory wheel and is approved by Daimler Commercial.
• We’ve designed our EZ line of wheel simulators so they are EZ to install, EZ to clean and EZ to maintain. Plus they are offered at a lower price, which makes them EZ to purchase.
• High quality, heavy-gauge stainless steel.
• Patented mounting system — no lug nuts to remove.
• Rear simulators have a new, extremely low center cap design that eliminates obstructions when servicing and creates the easiest wheel simulators to maintain and clean.
RealWheels Product Video Available
American-Made
Solutions For Sprinters
DODGE SPRINTER SIMULATORS (Single Wheel)
2007–Current 2500 (EZ)
2004–2006 2500
| SIZE | FITS | MODEL # |
|---|
| 16” x 6” | ’04-’06 2500 | RW1601-3ABK |
| 16” x 6” | ’07-cur. 2500 | RW1603-SAK |
• Cutout patterns match factory wheels for improved air flow!
• Integrated lug nut cover design prevents curbing damage, eliminates missing lug nut covers, and provides easy maintenance.
FORD TRANSIT SIMULATORS & ACCESSORIES
(2014–Current)
| SIZE | FITS | MODEL # | W/ EXTENSIONS KIT |
|---|
| 16” x 6” | Single Wheels | RW1604-TAK | N/A |
| 16” x 6” | Dual Wheels | RW1606-12TAK | RW1606-12TAXK |
• All high quality, heavy-gauge stainless steel.
• Covers install easily — no lug nuts to remove.
Overlays securely adhere with heavy-duty 3M tape.
| DESCRIPTION | MODEL # |
|---|
| 2pc S.S. Hood Vent Overlays | RWG7101-TRHV15 |
| 4pc S.S. Grille Overlay | RWG7100-CTR15 |
| 4pc S.S. Grille Overlay and 2pc S.S. Hood Vent Overlays | RWG7100-DTRV15 |
RealWheels Product Video Available
1-800-982-1180
www.RealWheels.com
STAINLESS STEEL FRONT BABY MOONS
• Fits All Front Wheels with 4, 5 or 6 Pilots – Hub or Stud Piloted – Aluminum or Steel Wheels.
• Built to last with heavy gauge 304L stainless steel— up to 91% heavier than the imports.
• Installation is quick, easy and secure!
The Last One You’ll Ever Need To Buy!
A: Reinforcing bead adds extra strength and covers pilots.
B: Integrated locking tabs require no separate clips.
| DESCRIPTION | WITH LOGO | NO LOGO | OPEN CENTER |
|---|
| Fits 4, 5, 6 Locators | RW6215U2 | RW6215U2NEL | RW6220U2 |
RealWheels Product Video Available
STAINLESS STEEL REAR HIGH HATS
• Wheel manufacturers do not recommend under-the-lug mounting systems. That’s why RealWheels Patented High Hat Mounting Systems make so much sense!
• They do not disturb wheel balance.
• High Hats fit all steel disc or aluminum wheels whether 8 or 10 lug, hub piloted or stud piloted.
• All 304L Stainless Steel
• Includes (1) mounting bracket
| HEIGHT | FITS AXLE | STUD/OIL CAP | VEHICLES | MOUNTING | MODEL # |
|---|
| 9.8” | 8.25” – 8.75” Dia. Drive | 5/8” & 3/4” | Buses, Tow Lift Axles | RW77-850 | RW7719-850NEL / with Logo: RW7719-850 |
| 9.8” | 8.25” – 8.75” Dia. Drive | 5/8” & 3/4” | Standard Class 7 & 8 | RW77SF | RW7719SFNEL / with Logo: RW7719SF |
Standard Foam Mounting Bracket
Patented Band Clamp Mounting Bracket
| STYLE | DRIVE AXLE | MODEL # |
|---|
| Band Clamp Mount | 8.25” – 8.75” | RW77-850 |
| Standard Foam Insert | 8.25” – 8.75” | RW77SF |
RealWheels Product Video Available
American-Made
Axle Cover Solutions
GEAR NUT AXLE COVERS
Installation is quick, easy and secure!
1. Install Bracket
2. Install High Hat
3. Thread on Gear Nut
4. Tighten with Wrench
| SIZE | VEHICLE | WHEEL SIZE | BRACKET | MODEL # |
|---|
| 9.75” H | Ford / International | 19.5”, 10 Lug | 10947 | RW7719-2GN-19 |
| 9.75” H | International | 19.5”, 8 Lug | 10947 | RW7719-2GN-19 |
| 9.75” H | Hino | 19.5”, 10 Lug | 10948 | RW7719-2GN-19H |
| 9.75” H | Peterbilt, Kenworth, Freightliner, Int’l, Ford | 22.5”, 10 Lug | 10941U | RW7719-2GN-U |
• Includes:
(1) Rear Cover
(1) Bracket
(1) Gear Nut
• New universal mounting system provides quick, easy access and confident, secure reinstallation during vehicle service.
• Gear-Nut Mounting Device is precision-machined, enhanced with a color logo and features our anti-rotation technology for additional secure mounting.
ACCESSORIES
| STYLE | MODEL # |
|---|
| Gear Nut Mounting Tool | RW2GNT |
| Round Gear Nut | RW1240-2 |
RealWheels Product Video Available
1-800-982-1180
www.RealWheels.com
AXLE COVER TRIM KIT
Lug Nut Cover Options
Stainless 33mm
Chrome Plastic 33mm
Chrome Plastic 1-1/2”
4 Wheel Trim Kits
(Includes: 2 Baby Moons, 2 High Hats & 40 Lug Nut Covers)
| BABY MOON | HIGH HAT | LUG NUT COVERS | DRIVE DIA. | WITH LOGO | NO LOGO |
|---|
| Solid Center | 8” Tall | 8” – 8.75” | Stainless 33mm | RW8102 | RW8102NEL |
| Open Center | 8” Tall | 8” – 8.75” | Stainless 33mm | RW8103 | RW8103NEL |
| Open Center | 10” Tall | 8” – 8.75” | Stainless 33mm | RW8104 | RW8104NEL |
| Solid Center | 10” Tall | 8” – 8.75” | Stainless 33mm | RW8106 | RW8106NEL |
| Solid Center | 8” Tall | 8” – 8.75” | Chrome Plastic 33mm | RW8122 | RW8122NEL |
| Solid Center | 8” Tall | 8” – 8.75” | Chrome Plastic 1-1⁄2” | RW8123 | RW8123NEL |
6 Wheel Trim Kits
(Includes: 2 Baby Moons, 4 High Hats & 60 Lug Nut Covers)
| BABY MOON | HIGH HAT | LUG NUT COVERS | DRIVE DIA. | WITH LOGO | NO LOGO |
|---|
| Solid Center | 8” Tall | 8” – 8.75” | Stainless 33mm | RW8102-2 | RW8102-2NEL |
| Solid Center | 8” Tall | 8” – 8.75” | None | RW8102FR-2 | RW8102FR-2NEL |
| Open Center | 8” Tall | 8” – 8.75” | Stainless 33mm | RW8103-2 | RW8103-2NEL |
| Open Center | 10” Tall | 8” – 8.75” | Stainless 33mm | RW8104-2 | RW8104-2NEL |
| Solid Center | 10” Tall | 8” – 8.75” | Stainless 33mm | RW8106-2 | RW8106-2NEL |
| Solid Center | 8” Tall | 8” – 8.75” | Chrome Plastic 33mm | RW8122-2 | RW8122-2NEL |
| Solid Center | 8” Tall | 8” – 8.75” | Chrome Plastic 1-1⁄2” | RW8123-2 | RW8123-2NEL |
American-Made
Axle Cover Solutions
GEAR-NUT KITS FOR MEDIUM-DUTY TRUCKS
For New International CV Series and Chevy Silverado 4500HD, 5500HD and 6500HD
• Built to last with heavy gauge 304L stainless steel—up to 91% heavier than the imports.
• Front Axle Covers available with cutout for oil cap viewing.
NEW!
| 2019 VEHICLE | SIZE | BOLT SPREAD | OPEN CENTER | SOLID CENTER |
|---|
| International CV Series | 19.5” | 275mm | RW8109 | RW8108 |
| Chevy Silverado 4500HD/5500HD/6500HD | 19.5” | 275mm | RW8109 | RW8108 |
Kits Include: (2) Baby Moons, (2) Gear-Nut High Hats and (32) Lug Nut Covers – RW5625
• For Kits Without Logos, add “NEL” to the end of the model number
TRIM KITS FOR MEDIUM-DUTY TRUCKS
These stainless steel trim kits will give your truck a classic custom appearance, plus they are simple to install.
• Made with high-quality, non-magnetic 304L stainless steel — will not rust, pit, corrode or turn yellow.
NEW!
| VEHICLE | YEAR | SIZE | LUGS | LUG NUT COVERS | MODEL # |
|---|
| Ford F450/F550 | 2005 – Curr. | 19.5” | 10 Lug | (40) RW5601 | RW8182 |
| Ford F53/F59 | 2007 – Curr. | 19.5” | 10 Lug | (40) RW5601 | RW8182 |
| Ford F450/F550 | 1999-2004 | 19.5” | 8 Lug | (32) RW5600 | RW8183 |
| International TerraStar | All Years | 19.5” | 10 Lug | (40) RW5601 | RW8182 |
| Dodge 4500/5500 | 2018 – Curr. | 19.5” | 10 Lug | (40) RW5602 for 7/8” Lug Nuts | RW8110 |
| Dodge 4500/5500 | 2018 – Curr. | 19.5” | 10 Lug | (40) RW5603 for 1-1⁄16” Lug Nuts | RW8111 |
Kits Include: (2) Baby Moons – RW6115, (2) High Hats – RW7612SF and Lug Nut Covers
RealWheels Product Video Available
1-800-982-1180
www.RealWheels.com
16.5, 17.5 & 19.5 COVER UP HUB COVERS
• Low profile design.
• For steel or aluminum wheels.
• Will not crack like plastic when removing.
• Integrated Lug Nut Cover design.
• Easy and secure installation with our over-the-lug mounting brackets.
| VEHICLE TYPE—19.5 | FRONT SET | REAR SET | FRT/REAR KIT |
|---|
| Ford F450/550, International TerraStar, 10 Lug | RW1081-20FK | RW1084-20RK | RW1080-20K |
| Ford F450/550 4WD, Int’l TerraStar, 10 Lug | RW1081-20FK4 | RW1084-20RK | RW1080-20K4 |
| Dodge 4500/5500, 10 Lug, Aluminum Wheels | RW1081-21FK | RW1084-21RK | RW1080-21K |
| Hino/Fuso/Isuzu, 6-Lug Ball Seat Wheels | RW1083-22FK | RW1084-23RK | RW1085K |
| VEHICLE TYPE—16.5 / 17.5 | FRONT SET | REAR SET | FRT/REAR KIT |
|---|
| Hino/Fuso/Isuzu, 6-Lug Ball Seat Wheels | RW1083-22FK | RW1084-23RK | RW1085K |
22.5” COVER UP HUB COVERS
• Helps streamline your front wheels to reduce drag and improve aerodynamics.
• Patented “Wedge Lock” Bracket.
• Installation is quick, easy and secure!
• Makes cleaning wheels easy — no lug nuts to wash around.
| PILOTED | WHEEL TYPE | COVERS | MODEL # |
|---|
| Hub | Aluminum | Front Kit | RW1013-013HFK |
| Hub | Aluminum | Rear Kit | RW1015-015HRK |
| Stud | Aluminum | Front Kit | RW1013-012SFK |
| Stud | Aluminum | Rear Kit | RW1015-014SRK |
RealWheels Product Video Available
American-Made
Axle Cover Solutions
The RealStep™
Designed by RWC and Made to Fit Your Specifications
NEW!
- NFPA tested and approved RealGrip™ Step Surface
- High-Grade Mirror Finish Stainless Steel
- Available With or Without LED Edge Lighting
- Available in a Mirror Finish or a Black Powder-Coated Finish
High Grade Stainless Steel Vehicle Steps Featuring RealGrip™ Surface
LED Edge Lighting
This system creates a safe lighted surface in dark situations, serves as additional side running lights or combined with turn signals. Available in Amber, Red or White.
RealGrip Edge Spikes
Designed and tested for added slip-resistance on the step edge! RWC is the first to specifically engineer “Edge Spikes” to provide a safe gripping surface to the normally smooth front edge radius that are common on typical steps.
RealStep Drainage Holes
Available with standard round drainage holes, or custom designed with OEM logo drainage hole cut-outs, provides an additional branding message, when stepping into your vehicle.
1-800-982-1180
www.RealWheels.com
LED AirGuard Set & Go Tire Pressure Monitoring System
Complies with the NFPA 1901 & 1917 Standards for ambulances and fire trucks
Low Tire Pressure Is Dangerous!
The Easiest TPMS to Install, Calibrate & Re-Calibrate
• Safety – Improper tire pressure has a detrimental effect on handling, braking and control.
• Longer Tire Life – According to the D.O.T., 95% of all premature tire wear is caused by underinflation.
• Self-calibrating – LED AirGuard Set & Go memorizes pressure when initially installed and can be easily recalibrated by simply removing and reinstalling.
• Improved Fuel Economy – Proper tire inflation can save an estimated 3% to 5% in fuel costs.
• The Set & Go can be used on any tire pressure between 20psi and 180psi.
• Battery standby time is warranted for 2 years from date stamped on the AirGuard. Batteries are non-replaceable.
• Ultra-bright LED allows for visual checks of each tire, even in daylight!
• Truckers & Fleets – Helps keep you CSA compliant.
LED AirGuard Set & Go is designed to fit Trucks, Fire Trucks, Semis, Trailers, Buses, Motorhomes, Cars, ATVs, Motorcycles and more!
RealWheels Product Video Available
DANGER | SAFE
LED AirGuard Set & Go starts flashing RED if the tire pressure drops 5 to 10 psi.
Set & Go Anti-theft Locking System
The use of the Locking Nut to tighten against the Set & Go on the valve stem helps prevent theft.
AirGuard Set & Go
| MODEL |
|---|
| RW-PPK-0402 | 4-Pk |
| RW-PPK-0403 | 6-Pk |
| RWTG1236 | Single |
No tools required for installation.
1. Check Tire Pressure
2. Thread On
3. Monitors Pressure
Starts flashing RED if tire pressure drops 5 to 10 psi.
POP Packaging & Displays Available!
Clamshell Package
4 or 6 packs (5” x 8”)
Counter Display Box
(11” x 7.5” x 7”)
Counter Easel Card
(8.5” x 11”)
Imported

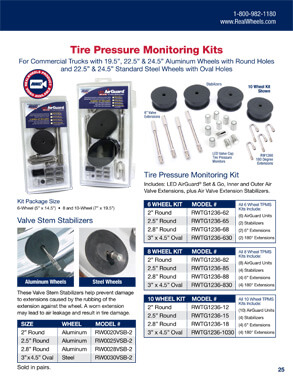

Tire Pressure Monitoring Systems
Tire Pressure Monitoring Kits
For Commercial Trucks with 19.5”, 22.5” & 24.5” Aluminum Wheels with Round Holes and 22.5” & 24.5” Standard Steel Wheels with Oval Holes
RealWheels Product Video Available
Kit Package Size
6-Wheel (5” x 14.5”) • 8 and 10-Wheel (7” x 19.5”)
10 Wheel Kit Shown
- 6” Valve Extensions
- LED Valve Cap Tire Pressure Monitors
- RW1266 180 Degree Extensions
- Stabilizers
Tire Pressure Monitoring Kit
Includes: LED AirGuard® Set & Go, Inner and Outer Air Valve Extensions, plus Air Valve Extension Stabilizers.
| 6 WHEEL KIT | MODEL # |
|---|
| 2” Round | RWTG1236-62 |
| 2.5” Round | RWTG1236-65 |
| 2.8” Round | RWTG1236-68 |
| 3” x 4.5” Oval | RWTG1236-630 |
All 6 Wheel TPMS Kits Include:
(6) AirGuard Units
(2) Stabilizers
(2) 6” Extensions
(2) 180° Extensions
| 8 WHEEL KIT | MODEL # |
|---|
| 2” Round | RWTG1236-82 |
| 2.5” Round | RWTG1236-85 |
| 2.8” Round | RWTG1236-88 |
| 3” x 4.5” Oval | RWTG1236-830 |
All 8 Wheel TPMS Kits Include:
(8) AirGuard Units
(4) Stabilizers
(4) 6” Extensions
(4) 180° Extensions
| 10 WHEEL KIT | MODEL # |
|---|
| 2” Round | RWTG1236-12 |
| 2.5” Round | RWTG1236-15 |
| 2.8” Round | RWTG1236-18 |
| 3” x 4.5” Oval | RWTG1236-1030 |
All 10 Wheel TPMS Kits Include:
(10) AirGuard Units
(4) Stabilizers
(4) 6” Extensions
(4) 180° Extensions
Valve Stem Stabilizers
Aluminum Wheels | Steel Wheels
These Valve Stem Stabilizers help prevent damage to extensions caused by the rubbing of the extension against the wheel. A worn extension may lead to air leakage and result in tire damage.
| SIZE | WHEEL | MODEL # |
|---|
| 2” Round | Aluminum | RW0020VSB-2 |
| 2.5” Round | Aluminum | RW0025VSB-2 |
| 2.8” Round | Aluminum | RW0028VSB-2 |
| 3” x 4.5” Oval | Steel | RW0030VSB-2 |
Sold in pairs.
1-800-982-1180
www.RealWheels.com
EZ-ACCESS AIR VALVE EXTENSION KIT
• No need to remove axle nuts— provided jam nuts secure onto excess thread.
• Allows for convenient air pressure check and inflation.
• Universal design for 5/8” and 3/4” axle studs.
• Braided stainless steel extensions mount securely to the EZ-Access Air Valve Tabs.
| DESCRIPTION | MODEL # |
|---|
| EZ-Access Kit | RW1258-5K |
RealWheels Product Video Available
BRAIDED AIR VALVE EXTENSIONS
Braided styles are made of stainless steel, the most rugged and trouble-free extension available. The extensions are made in various lengths to accommodate the requirements of any wheel cover or simulator.
| A. RW1258H | 15” Hooked |
| B. RW1258-1S | 14” Straight |
| C. RW1258-1H | 14” Hooked |
| D. RW1258S | 16” Straight |
| E. RW1259B | 5” w/ Clamp |
| F. RW1261 | Dbl. end air valve caps |
RealWheels Product Video Available
CROSSFIRE DUAL TIRE PRESSURE EQUALIZING SYSTEM
RWPSI
Allow air to flow between the two tires and equalize pressure with the Crossfire Tire Pressure Equalizing and Monitoring System. This helps reduce wear and tear on tires, and simplifies tire maintenance, saving you time and money. Fits all types of wheels.
Accessories
SOLID STYLE AIR VALVE EXTENSIONS
| STYLE | QUANTITY | MODEL # |
|---|
| 180° Angle | 2 | RW-PPK-1266-2 |
| 180° Angle | 4 | RW-PPK-1266-4 |
| 90° Angle | 2 | RW1267-2 |
| 45° Angle | 2 | RW1263-2 |
| 2” Straight | 2 | RW1262-2 |
| 3” Straight | 2 | RW1260 |
| 6” Straight | 2 | RW1259S-2 |
• Custom valve extensions are made in various lengths to accommodate the requirements of any wheel cover or simulator.
• Extensions are made from nickel-plated brass.
• Extensions make checking air pressure a breeze.
• Easy to install.
RealWheels Product Video Available
180° Angle
90° Angle
45° Angle
2” Straight
6” Straight
Clamshell Packaging for easy display
LUG CHECK™
Lug Check Loose Lug Nut Cover Indicators allow for quick and easy visual inspection.
IMPROVED DESIGN!
Shown with optional reflector.
The only lug nut cover that provides safety and good looks.
Safe | Unsafe
• Fits 33mm lug nuts.
• High-quality, chrome plated ABS.
• For added safety, optional red, yellow or white reflective dome inserts available. Personalized domed logos also available. Call for more information.
| DESCRIPTION | MODEL # |
|---|
| 33mm Lug Nut Cover (Only) | RW5810 |
| Lug Nut Cover w/ Black Indicator | RW5810B |
| Lug Nut Cover w/ Yellow Indicator | RW5810Y |
| Black Loose Lug Nut Indicator (Only) | RW1273B |
| Yellow Loose Lug Nut Indicator (Only) | RW1273Y |
RealWheels Product Video Available
1-800-982-1180
www.RealWheels.com
Lug Nut Covers are available for most popular lug nut sizes and shapes.
If you don’t see it, contact us at 800-982-1180 for additional sizes.
RW5510
Adjustable Lug Nut Pullers
Adjusts from 1/2” to 1-3/4”. They help remove lug nut covers without scratches or denting.
CHROME PLASTIC
RW5802
33mm with 2” flange
Height: 2½”
RW5801
1½” with 2 3⁄16” flange
Height: 2 3⁄4”
RW5805
33mm w/ flange
Height: 3 1⁄8”
RW5804
1¼”
Height: 2”
RW5800
1½”
Height: 2¼”
RW5810
33mm chrome plastic
(works with Lug Check see p.27)
Height: 2 3⁄8”
STAINLESS STEEL
RW5696
33mm w/ flange
Height: 2 9⁄16”
RW5612
1½” with skirt
Height: 2”
RW5610
1½”
Height: 1 5⁄8”
RW5615
1½”
Height: 2”
RW5630
41mm with skirt
Height: 1 7⁄8”
RW5620
32mm with flange
Height: 1 3⁄4”
RW5625
33mm with flange
Height: 2”
RW5618
30mm with flange
Height: 2”
RW5605
1” with skirt
Height: 1¼”
RW5600
Ford F450/F550 1999-2004,
13⁄16” with flange
Height: 1 9⁄16”
RW5601
Ford F450/F550 2005-current,
13⁄16” with flange
Height: 1 9⁄16”
RW5602
Dodge 4500/5500 2018-current,
7⁄8” with flange
Height: 1 9⁄16”
RW5603
Dodge 4500/5500 2018-current,
1 1⁄16” with flange
Height: 1 9⁄16”
Accessories
LOCK-DOWN HELMET HOLDER
Helps you comply with the NFPA 1901 Guidelines.
IMPROVED DESIGN!
- Quick Release Pull Tab can be Mounted on Either Side
- Lock-Down Adjustable Ratchet
- Stabilizer Ring
Designed to protect firefighters with a safe, secure and efficient way to store and access their helmets in the vehicle.
• The small footprint of the Lock-Down Helmet Holder allows for versatile mounting in numerous cab locations.
• The Lock-Down Helmet Holder features a stabilizer ring that fills the head recess of the helmet, thus eliminating any side-to-side motion.
• Universal design—the quick-release can be mounted on either side of the helmet holder to accommodate your space.
RW607-2
“Easy-in” storage and “easy-out” access of the helmet.
RealWheels Product Video Available
“LIBERTY” VEHICLE FLAG POLE SYSTEM
The heaviest-duty 304 stainless steel system on the market! It’s made from heavy gauge 304 stainless construction with CNC precision machined billet aluminum components, including top ball.
RW521-1
“Liberty” Kit with American Flag
RW522-1
“Liberty” Kit (No Flag)
RealWheels Product Video Available
1-800-982-1180
www.RealWheels.com
Freightliner Stainless Steel Grille Covers add style and beauty to Freightliner 108SD and 114SD trucks.
• Made from high-grade 304L stainless steel.
• Will never rust, corrode, pit or lose their shine.
• Formed to fit perfectly over your existing grille. No disassembly required.
• Easy installation. No tools required.
RWG108
6 slats for 108SD trucks
RWG108W
6 slats with cutouts for winter cover for 108SD trucks
RWG114
5 slats for 114SD trucks
RWG114W
5 slats with cutouts for winter cover for 114SD trucks
BEFORE AFTER
Custom and Deluxe Grille Covers
• Made from high-grade 304L stainless steel that will not rust, pit, corrode or lose its shine.
• Many other styles and custom grilles are available.
• Call or visit our website for more information.
Chevy Custom: RWG6500C (slats only)
International Deluxe: RWG4000D
Custom: RWG4000C (grille slats only)
American-Made
Stainless Steel Grille Covers
NEW!
Real-Spray Breaker™
Spray Suppression Mudflap
Increased visibility on the road is critical to safety. That’s why Real-Spray Breaker™ Mudflaps are a logical addition to any truck.
• Drastically reduces water spray
• Suppresses 433% more water than most popular competitor
• Reduces and helps contain dust and debris from the road—helps keep your truck clean
• Increases visibility and safety for the driver and other drivers on the road
• Lightweight and strong
• One-piece construction
• Easy to install
5/8” plastic mesh traps water and debris.
Anti-Clog Construction
Simply tap or hose the mudflap and the debris falls away.
| SIZES | MODEL # |
|---|
| 24” Wide x 14” High | RW2414SB |
| 20” Wide x 14” High | RW2014SB |
| 18” Wide x 10” High | RW1810SB |
Imprinting Available:
Imprint your company name or logo. Low minimums.
NEW!
FRONT LOADING FIRE EXTINGUISHER CASE
• All plastic construction, non-corrosive
• Lightweight
• Viewing window
• Internal extinguisher strap
• Suitable for most 13lb and 20lb extinguishers
BJB-RB155
Width: 11-1⁄2”
Height: 27-1⁄4”
Depth: 10-1⁄4”
BOTTLE OPENERS
RWC-3-BO
• Precision laser-cut from heavy-gauge 304 brushed stainless steel.
• They won’t rust or pit.
• Custom engraving available. Call for more info.
RealWheels Product Video Available
1-800-982-1180
www.RealWheels.com

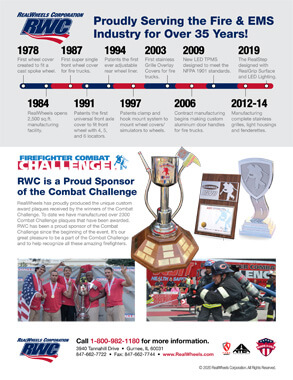

Proudly Serving the Fire & EMS Industry for Over 35 Years!
1978
First wheel cover created to fit a cast spoke wheel.
1984
RealWheels opens 2,500 sq.ft. manufacturing facility.
1987
First super single front wheel cover for fire trucks.
1991
Patents the first universal front axle cover to fit front wheel with 4, 5, and 6 locators.
1994
Patents the first ever adjustable rear wheel liner.
1997
Patents clamp and hook mount system to mount wheel covers/simulators to wheels.
2003
First stainless Grille Overlay Covers for fire trucks.
2006
Contract manufacturing begins making custom aluminum door handles for fire trucks.
2009
New LED TPMS designed to meet the NFPA 1901 standards.
2012-14
Manufacturing complete stainless grilles, light housings and fenderettes.
2019
The RealStep designed with RealGrip Surface and LED Lighting.
RWC is a Proud Sponsor of the Combat Challenge
RealWheels has proudly produced the unique custom award plaques received by the winners of the Combat Challenge. To date we have manufactured over 2300 Combat Challenge plaques that have been awarded. RWC has been a proud sponsor of the Combat Challenge since the beginning of the event. It’s our great pleasure to be a part of the Combat Challenge and to help recognize all these amazing firefighters.
Call 1-800-982-1180 for more information.
3940 Tannahill Drive • Gurnee, IL 60031
847-662-7722 • Fax: 847-662-7744 • www.RealWheels.com
© 2020 RealWheels Corporation. All Rights Reserved.
