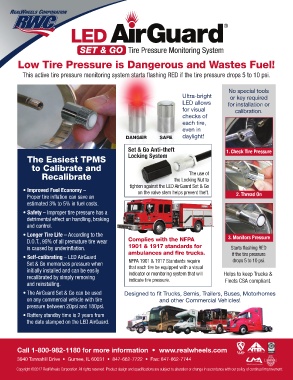

LED AirGuard Set & Go Tire Pressure Monitoring System
Low Tire Pressure is Dangerous and Wastes Fuel!
This active tire pressure monitoring system starts flashing RED if the tire pressure drops 5 to 10 psi.
The Easiest TPMS to Calibrate and Recalibrate
• Improved Fuel Economy – Proper tire inflation can save an estimated 3% to 5% in fuel costs.
• Safety – Improper tire pressure has a detrimental effect on handling, braking and control.
• Longer Tire Life – According to the D.O.T., 95% of all premature tire wear is caused by underinflation.
• Self-calibrating – LED AirGuard Set & Go memorizes pressure when initially installed and can be easily recalibrated by simply removing and reinstalling.
• The AirGuard Set & Go can be used on any commercial vehicle with tire pressure between 20psi and 180psi.
• Battery standby time is 2 years from the date stamped on the LED AirGuard.
Ultra-bright LED allows for visual checks of each tire, even in daylight!
DANGER SAFE
Set & Go Anti-theft Locking System
The use of the Locking Nut to tighten against the LED AirGuard Set & Go on the valve stem helps prevent theft.
Complies with the NFPA 1901 & 1917 standards for ambulances and fire trucks.
NFPA 1901 & 1917 Standards require that each tire be equipped with a visual indicator or monitoring system that will indicate tire pressure.
No special tools or key required for installation or calibration.
1. Check Tire Pressure
2. Thread On
3. Monitors Pressure
Starts flashing RED if the tire pressure drops 5 to 10 psi.
Helps to keep Trucks & Fleets CSA compliant.
Designed to fit Trucks, Semis, Trailers, Buses, Motorhomes and other Commercial Vehicles!
3940 Tannahill Drive • Gurnee, IL 60031 • 847-662-7722 • Fax: 847-662-7744
Call 1-800-982-1180 for more information • www.realwheels.com
Copyright ©2017 RealWheels Corporation. All rights reserved. Product design and specifications are subject to alteration or change in accordance with our policy of continual improvement.

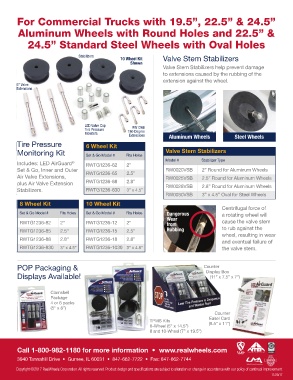

For Commercial Trucks with 19.5”, 22.5” & 24.5”
Aluminum Wheels with Round Holes and 22.5” &
24.5” Standard Steel Wheels with Oval Holes
10 Wheel Kit Shown
- 6” Valve Extensions
- LED Valve Cap Tire Pressure Monitors
- RW1266 180 Degree Extensions
- Stabilizers
Tire Pressure Monitoring Kit
Includes: LED AirGuard® Set & Go, Inner and Outer Air
Valve Extensions, plus Air Valve Extension Stabilizers.
6 Wheel Kit
Set & Go Model # Fits Holes
---------------- ----------
RWTG1236-62 2”
RWTG1236-65 2.5”
RWTG1236-68 2.8”
RWTG1236-630 3” x 4.5”
8 Wheel Kit
Set & Go Model # Fits Holes
---------------- ----------
RWTG1236-82 2”
RWTG1236-85 2.5”
RWTG1236-88 2.8”
RWTG1236-830 3” x 4.5”
10 Wheel Kit
Set & Go Model # Fits Holes
---------------- ----------
RWTG1236-12 2”
RWTG1236-15 2.5”
RWTG1236-18 2.8”
RWTG1236-1030 3” x 4.5”
Valve Stem Stabilizers
Valve Stem Stabilizers help prevent damage to extensions caused by the rubbing of the extension against the wheel.
Model # Stabilizer Type
--------- --------------------
RW0020VSB 2” Round for Aluminum Wheels
RW0025VSB 2.5” Round for Aluminum Wheels
RW0028VSB 2.8” Round for Aluminum Wheels
RW0030VSB 3” x 4.5” Oval for Steel Wheels
Valve Stem Wear Is Dangerous
Centrifugal force of a rotating wheel will cause the valve stem to rub against the wheel, resulting in wear and eventual failure of the valve stem.
Dangerous Wear from Rubbing
POP Packaging & Displays Available!
Clamshell Package
4 or 6 packs
(5” x 8”)
Counter Display Box
(11” x 7.5” x 7”)
TPMS Kits
6-Wheel (5” x 14.5”)
8 and 10-Wheel (7” x 19.5”)
Counter Easel Card
(8.5” x 11”)
Call 1-800-982-1180 for more information • www.realwheels.com
3940 Tannahill Drive • Gurnee, IL 60031 • 847-662-7722 • Fax: 847-662-7744
Copyright ©2017 RealWheels Corporation. All rights reserved. Product design and specifications are subject to alteration or change in accordance with our policy of continual improvement.
